Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

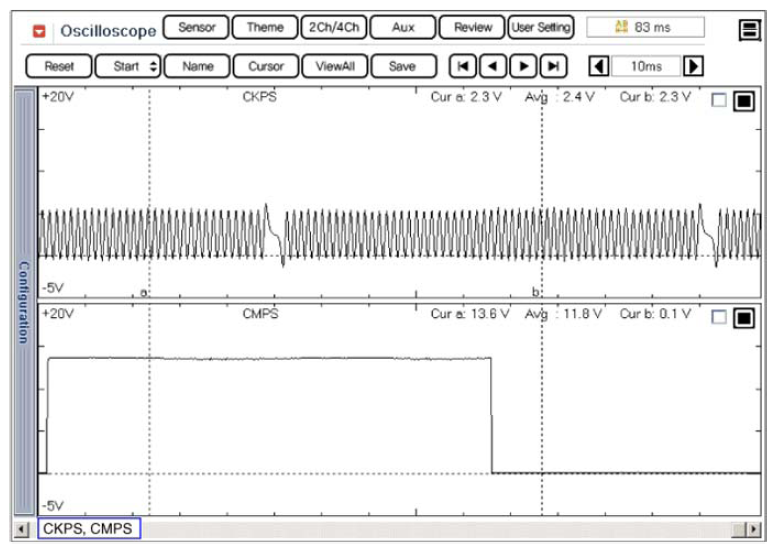

Fig 1: CKPS And CMPS Waveform (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

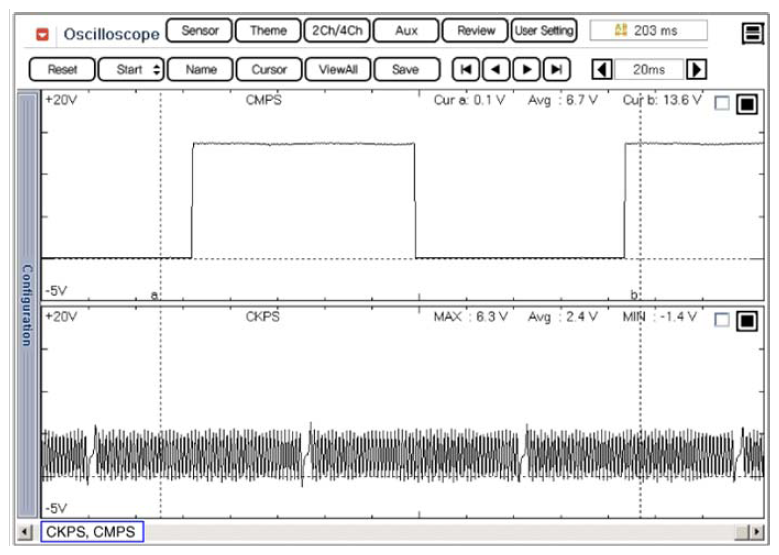

Fig 2: CKPS And CMPS Waveform (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
