Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat (Refer to "REAR SEAT " in BD group).
  3. Remove the fuel pump service cover (A).

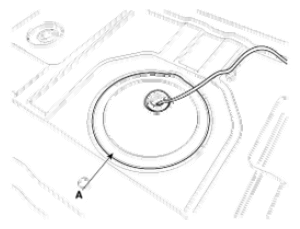

    Fig 1: Identifying Fuel Pump Service Cover
    G08331074Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    Fig 2: Fuel Tank Pressure Sensor And Connector Component Location
    G08331075Courtesy of KIA MOTORS AMERICA, INC.
