Camshaft Position Sensor (CMPS)
>>
Troubleshooting
>>
Wave Form
Wave Form

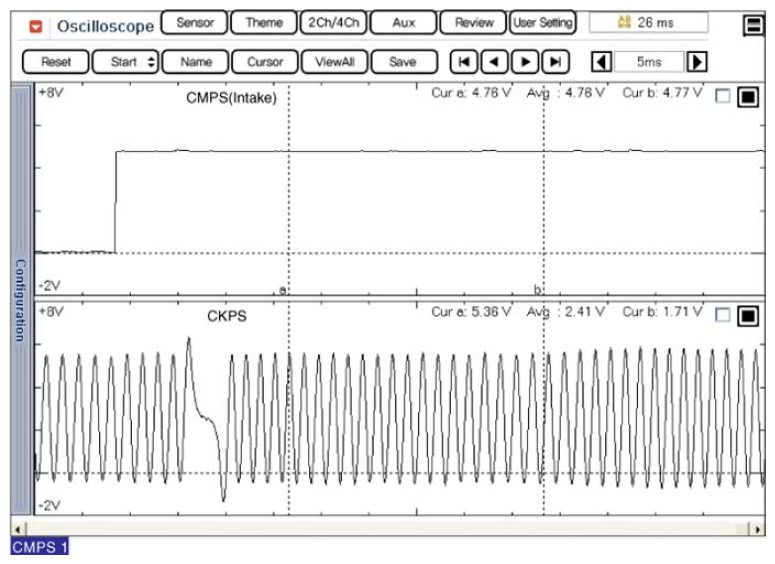

Fig 1: Display - CMPS (Intake) And CKPS Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

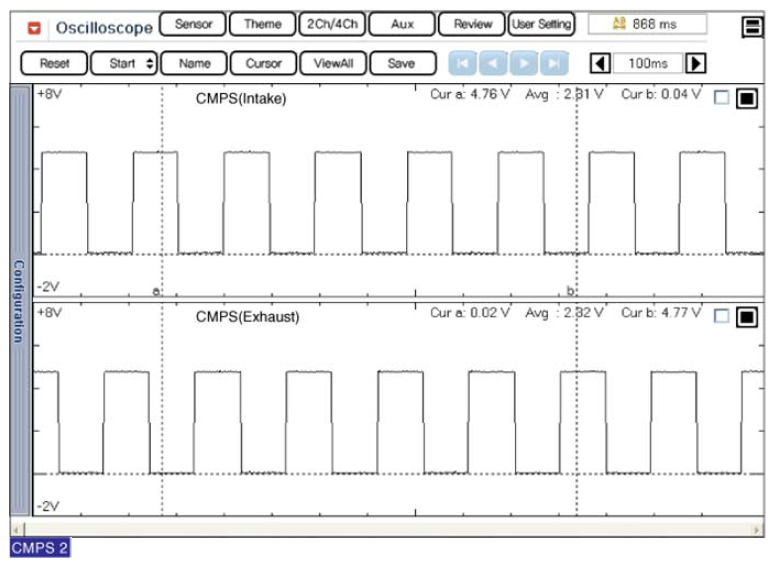

Fig 2: Display - CMPS (Intake And Exhaust) Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
