Home >> Kia >> 2012 >> Soul Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Engine Control Module (ECM) >> Schematic Diagrams >> Circuit Diagram >> (A/T)

Circuit Diagram: (A/T)

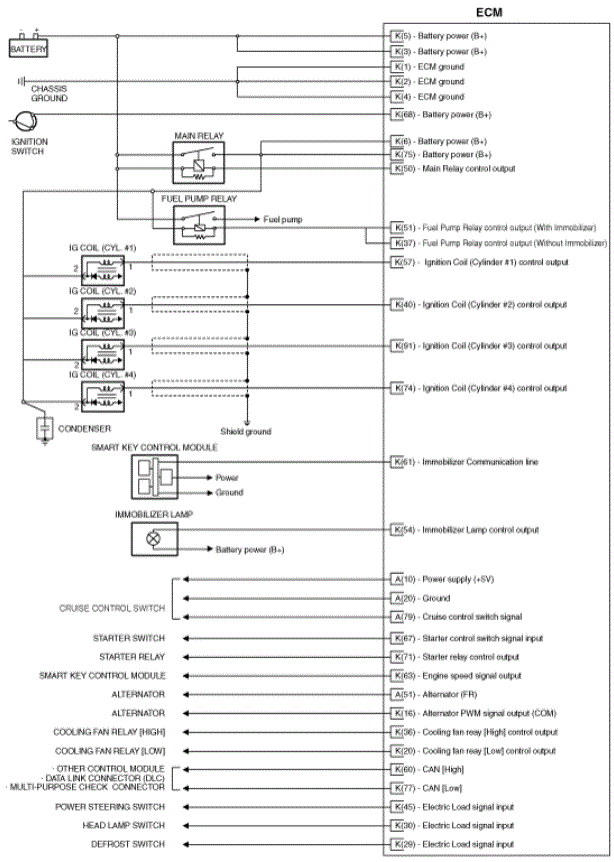

Fig 1: ECM (A/T) - Circuit Diagram (1 Of 4)
G08327925Courtesy of KIA MOTORS AMERICA, INC.

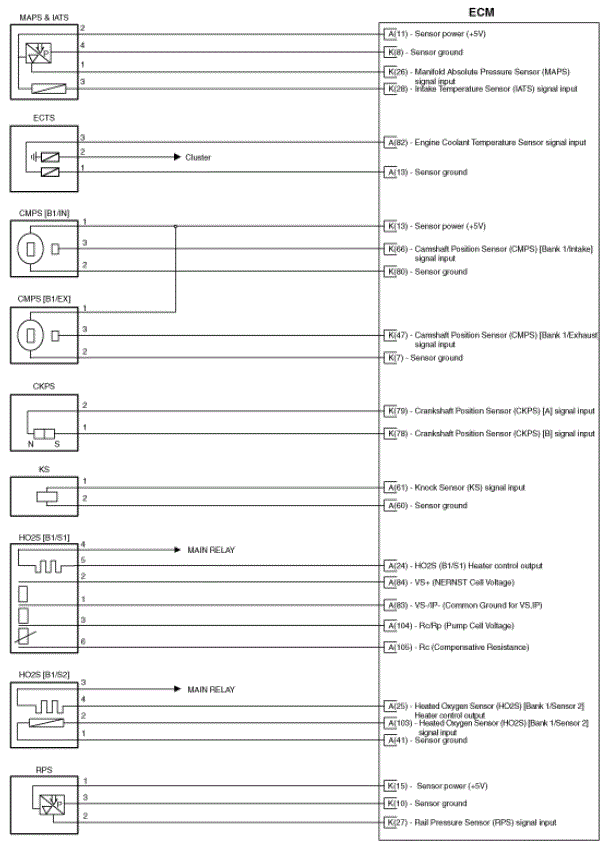

Fig 2: ECM (A/T) - Circuit Diagram (2 Of 4)
G08327926Courtesy of KIA MOTORS AMERICA, INC.

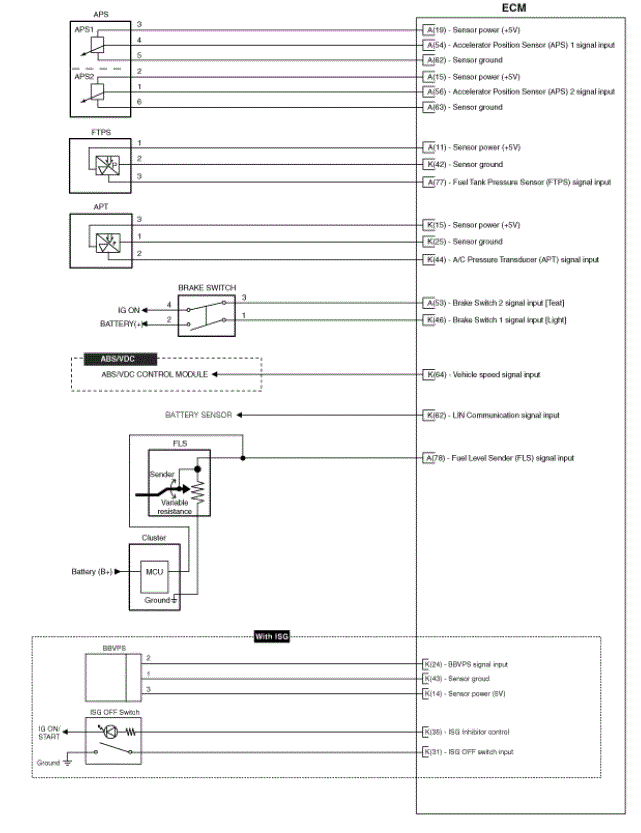

Fig 3: ECM (A/T) - Circuit Diagram (3 Of 4)
G08327927Courtesy of KIA MOTORS AMERICA, INC.

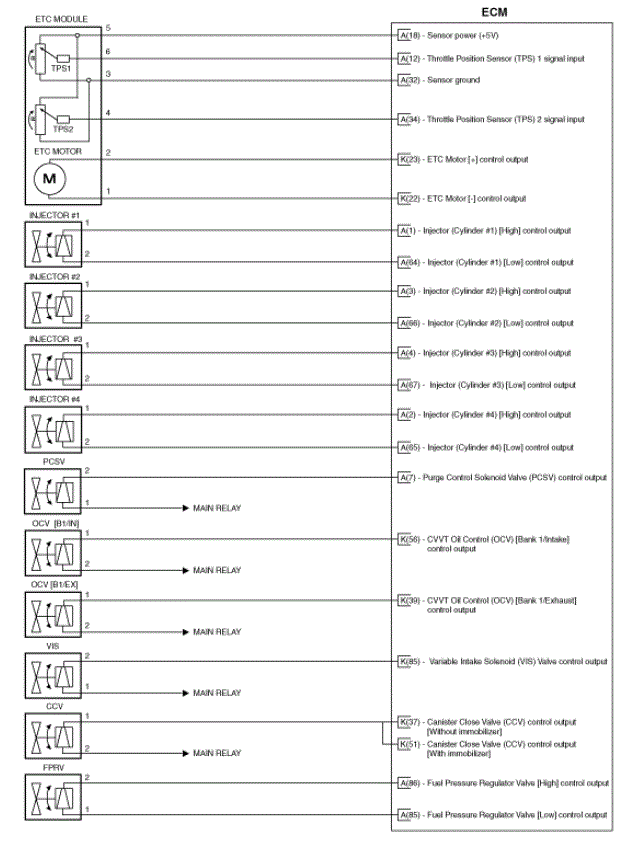

Fig 4: ECM (A/T) - Circuit Diagram (4 Of 4)
G08327928Courtesy of KIA MOTORS AMERICA, INC.
