Circuit Diagram: (M/T)

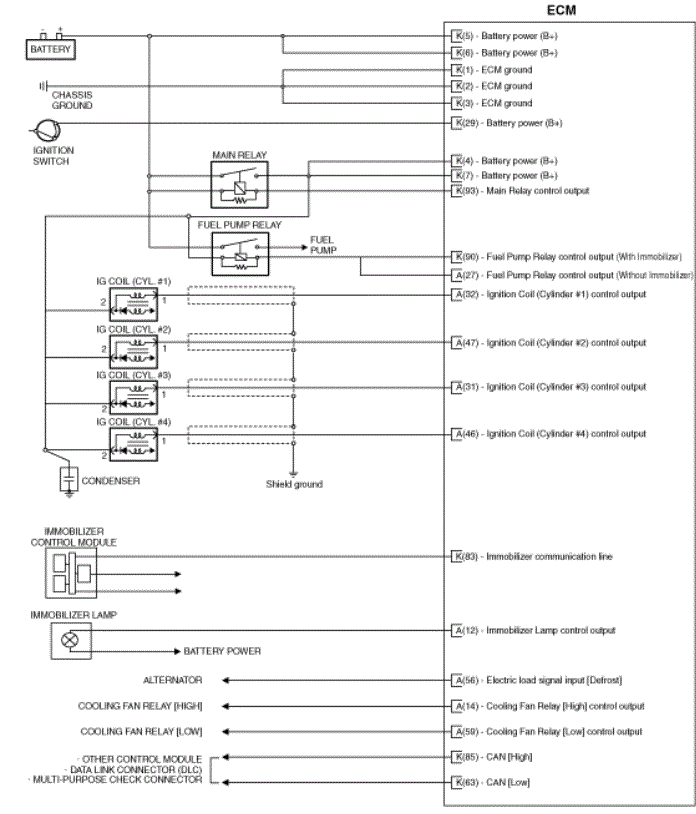

Fig 1: ECM (M/T) - Circuit Diagram (1 Of 4)
G08327921Courtesy of KIA MOTORS AMERICA, INC.

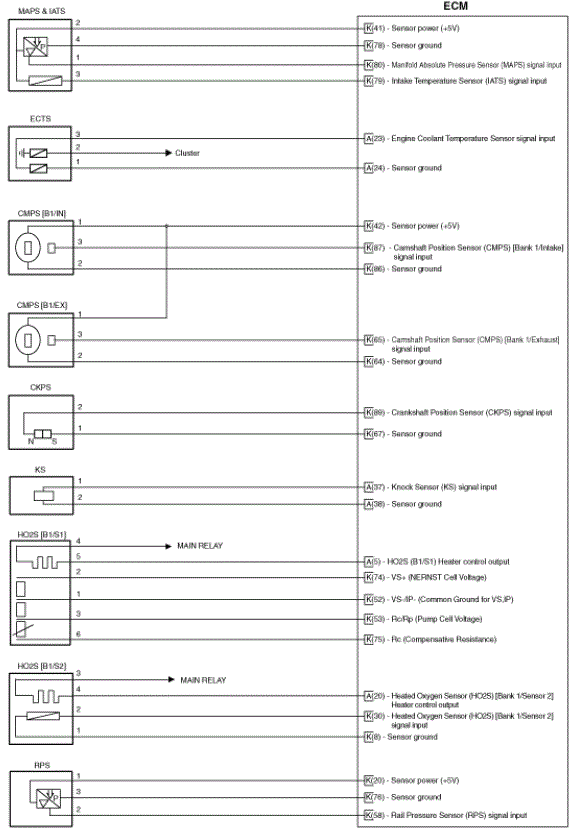

Fig 2: ECM (M/T) - Circuit Diagram (2 Of 4)
G08327922Courtesy of KIA MOTORS AMERICA, INC.

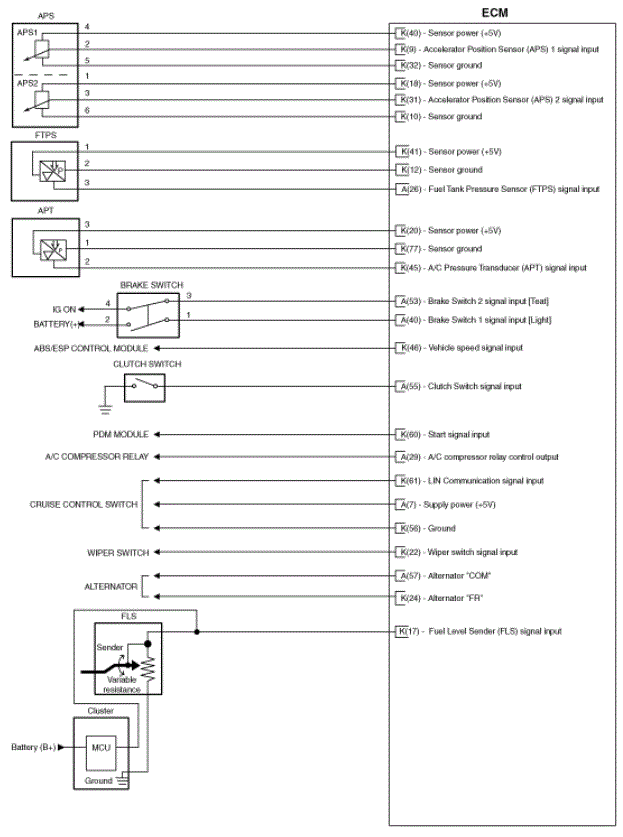

Fig 3: ECM (M/T) - Circuit Diagram (3 Of 4)
G08327923Courtesy of KIA MOTORS AMERICA, INC.

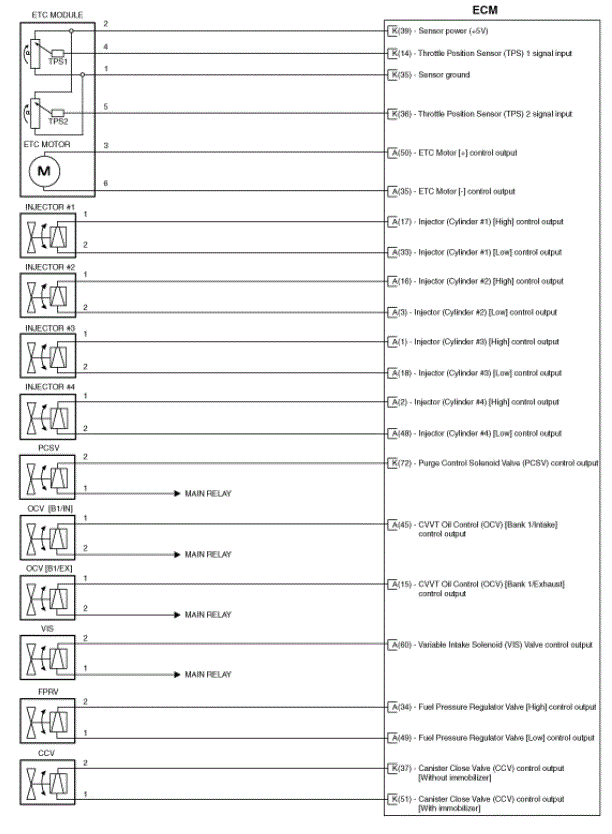

Fig 4: ECM (M/T) - Circuit Diagram (4 Of 4)
G08327924Courtesy of KIA MOTORS AMERICA, INC.
