Soul Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 1.6L
>>
Heated Oxygen Sensor (HO2S)
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

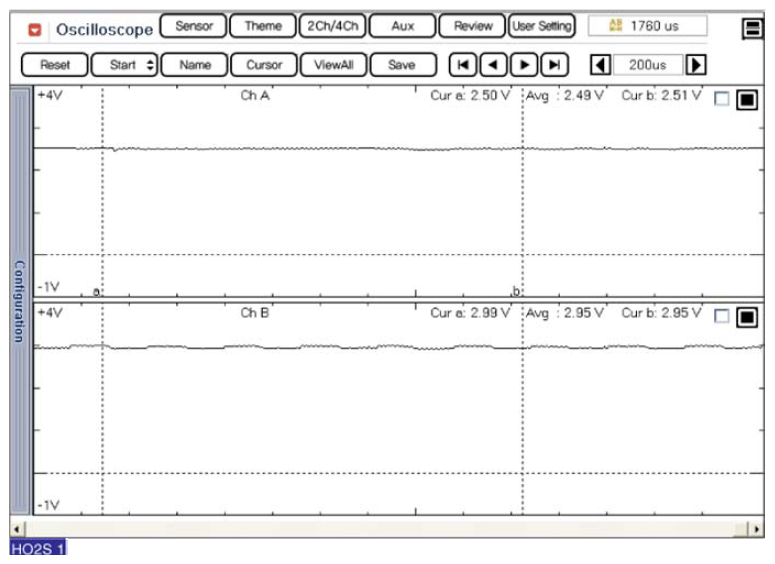

Fig 1: Display - Heated Oxygen Sensor 1 Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

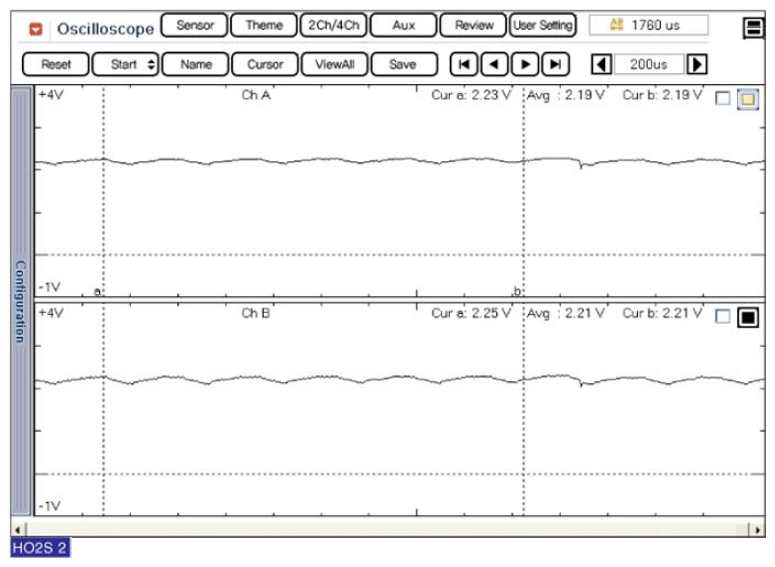

Fig 2: Display - Heated Oxygen Sensor 2 Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

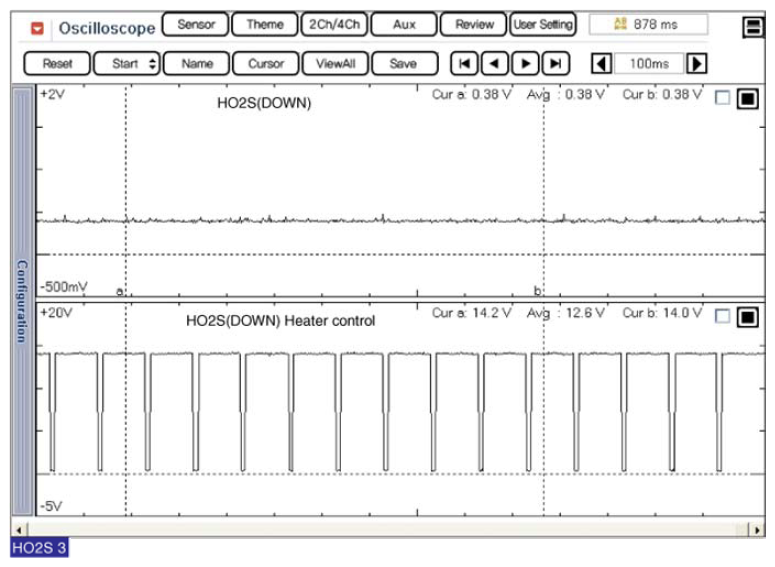

Fig 3: Display - HO2S(DOWN) And HO2S(DOWN) Heater Control Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
