Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve after removing the bolt (C).

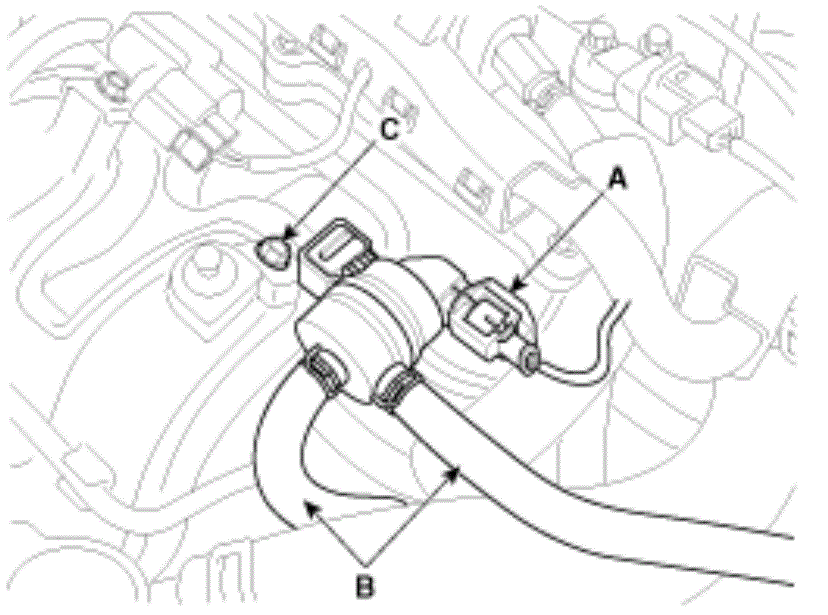

    Fig 1: Purge Control Solenoid Valve Component Location
    G08328014Courtesy of KIA MOTORS AMERICA, INC.
