Components Location

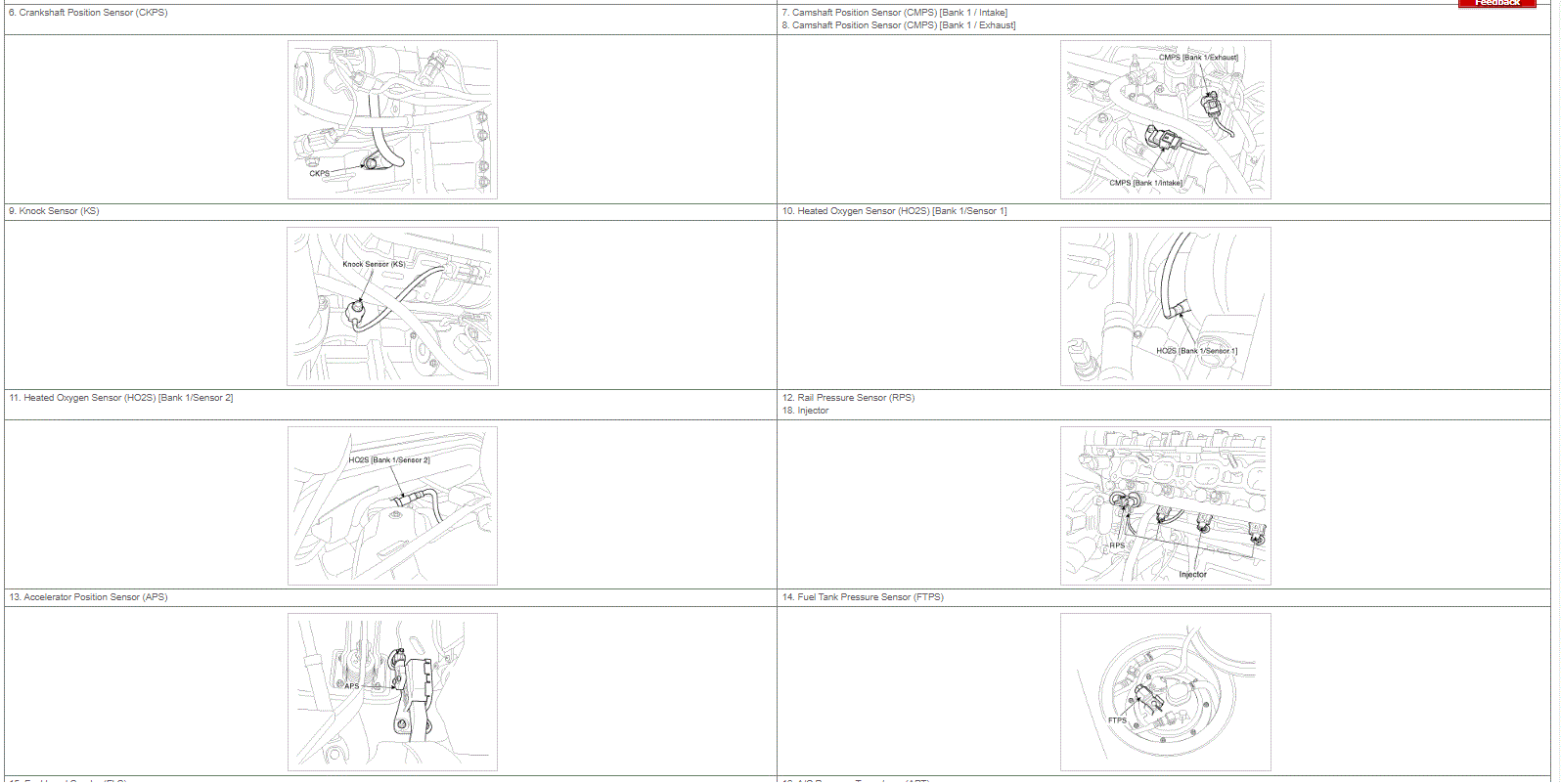

Fig 1: Identifying Engine Control/Fuel System Components (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

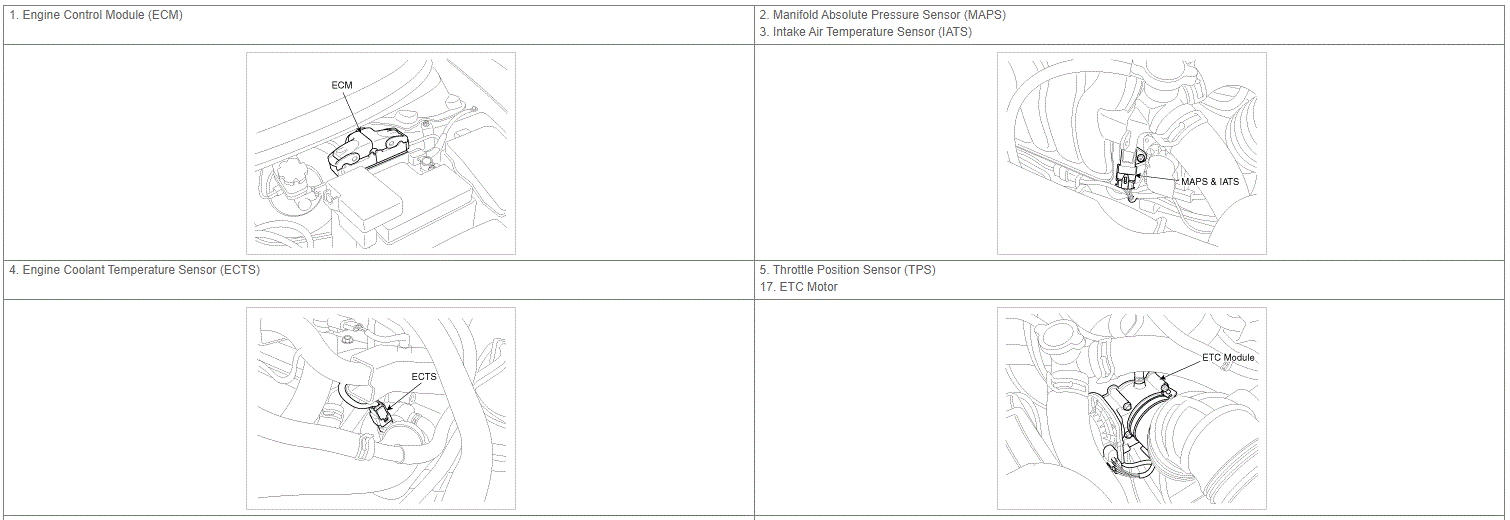

Fig 2: Identifying Engine Control/Fuel System Components (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

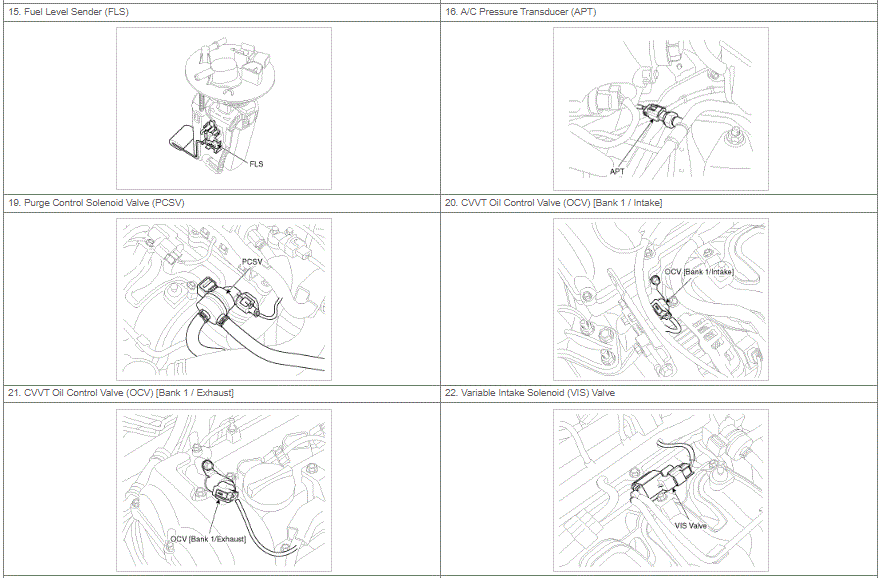

Fig 3: Identifying Engine Control/Fuel System Components (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

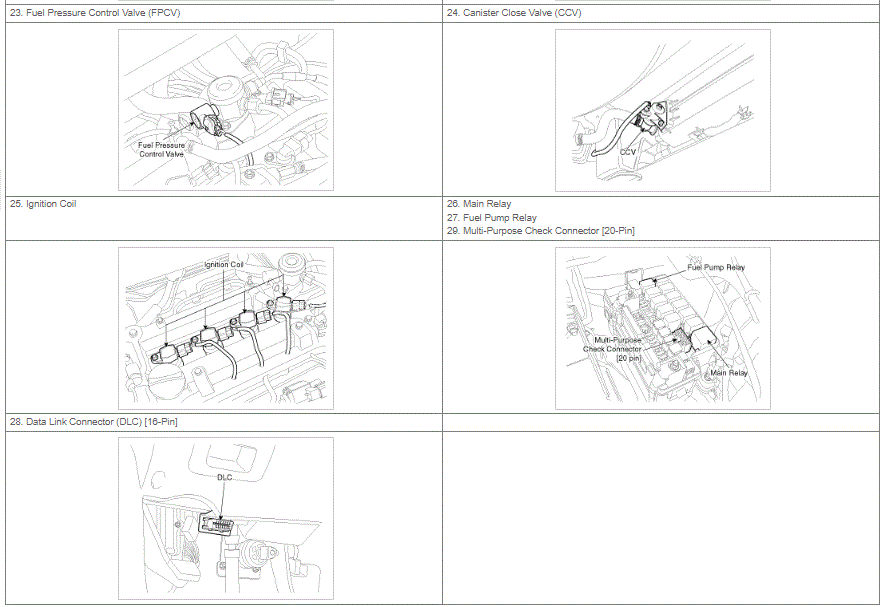

Fig 4: Identifying Engine Control/Fuel System Components (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

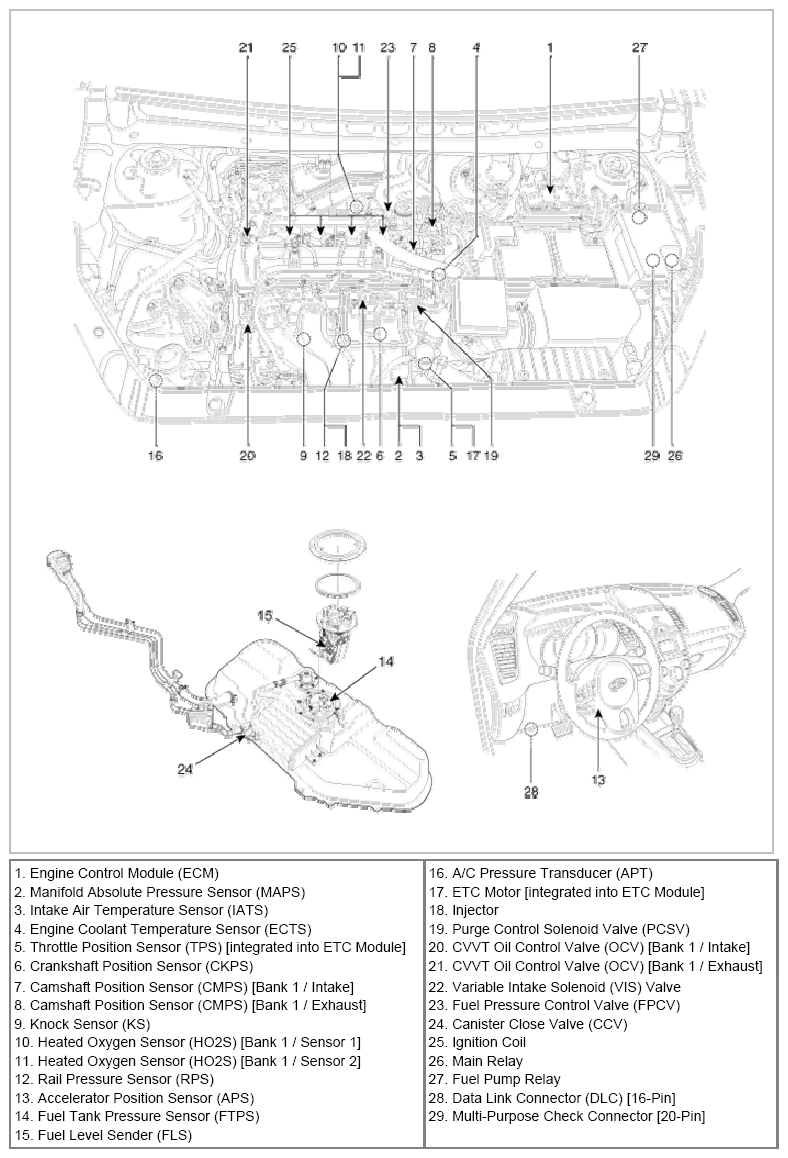

Fig 5: Identifying Engine Control/Fuel System Components (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
