Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the installation bolt (B) and nuts (C), and then remove the accelerator pedal module.

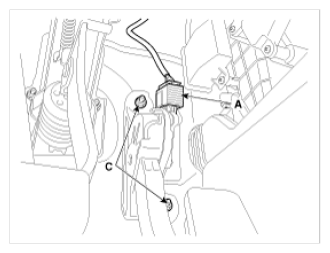

    Fig 1: Identifying Accelerator Position Sensor Connector And Nuts
    G09765348Courtesy of KIA MOTORS AMERICA, INC.

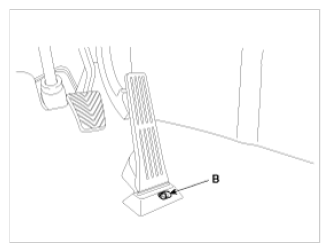

    Fig 2: Identifying Accelerator Position Sensor Connector And Bolt
    G09765349Courtesy of KIA MOTORS AMERICA, INC.
