Components Location

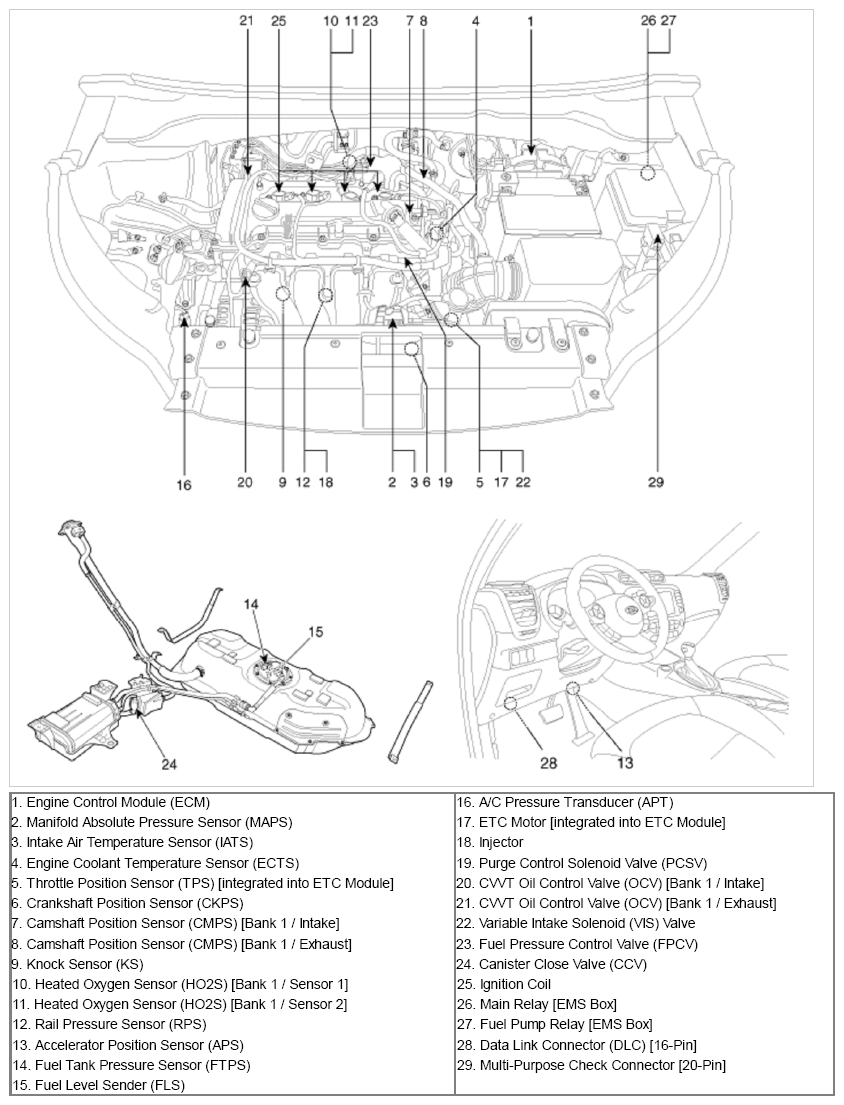

Fig 1: Engine Control System Components Location

Courtesy of KIA MOTORS AMERICA, INC.

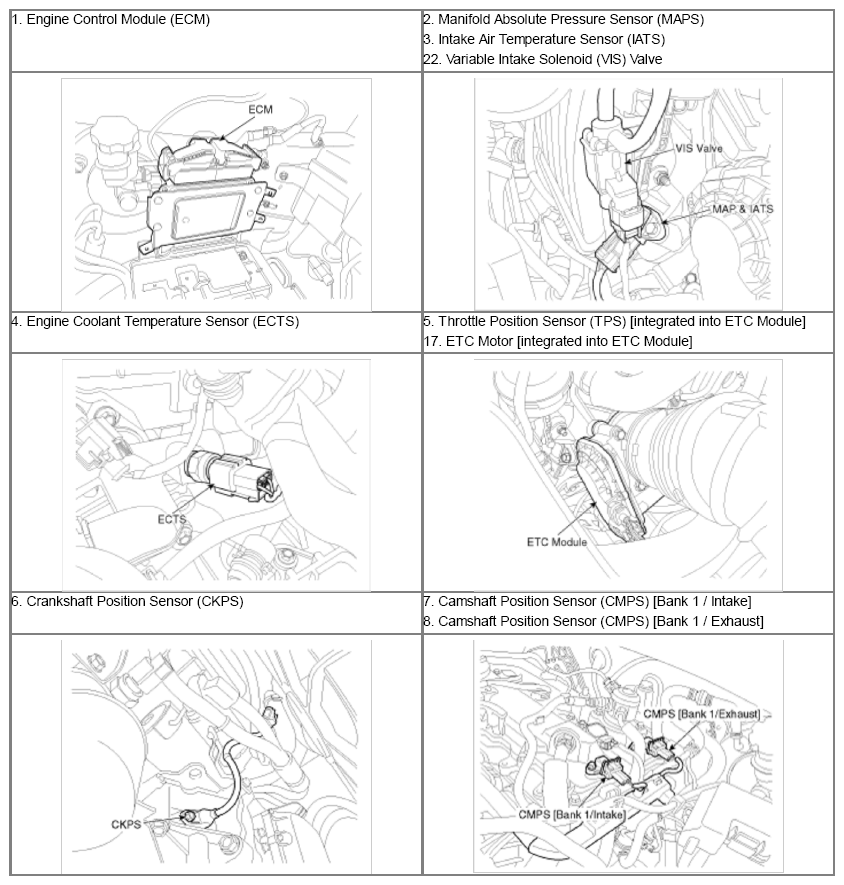

Fig 2: Identifying Engine Control System Components (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Engine Control System Components (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

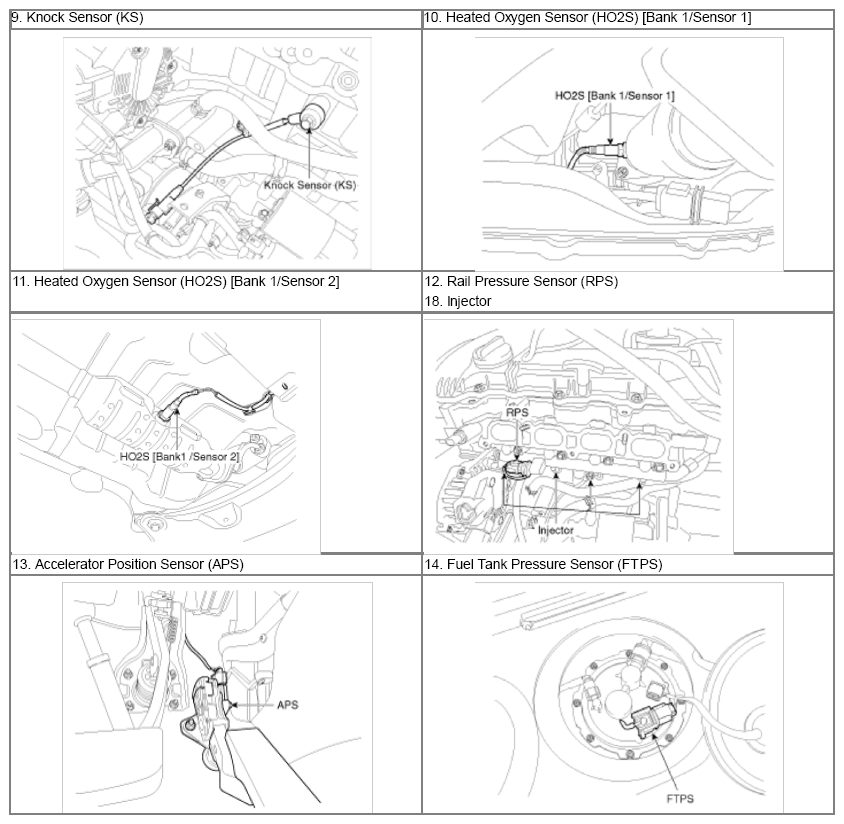

Fig 4: Identifying Engine Control System Components (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

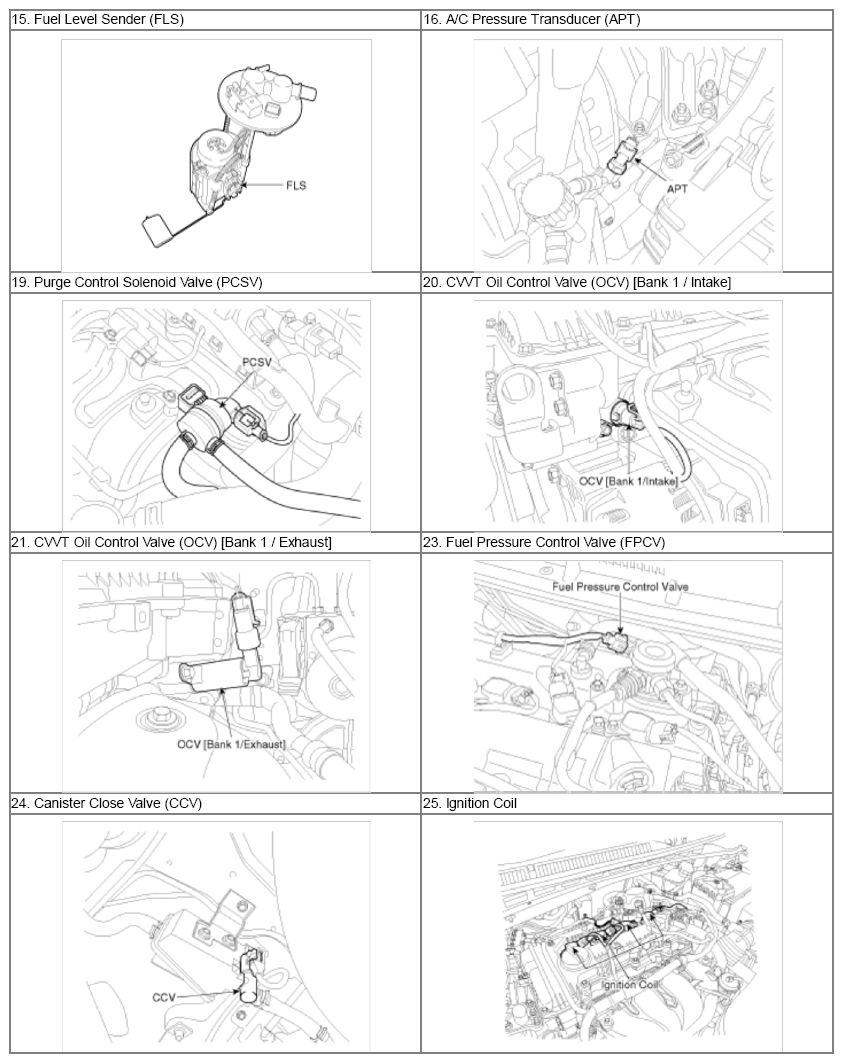

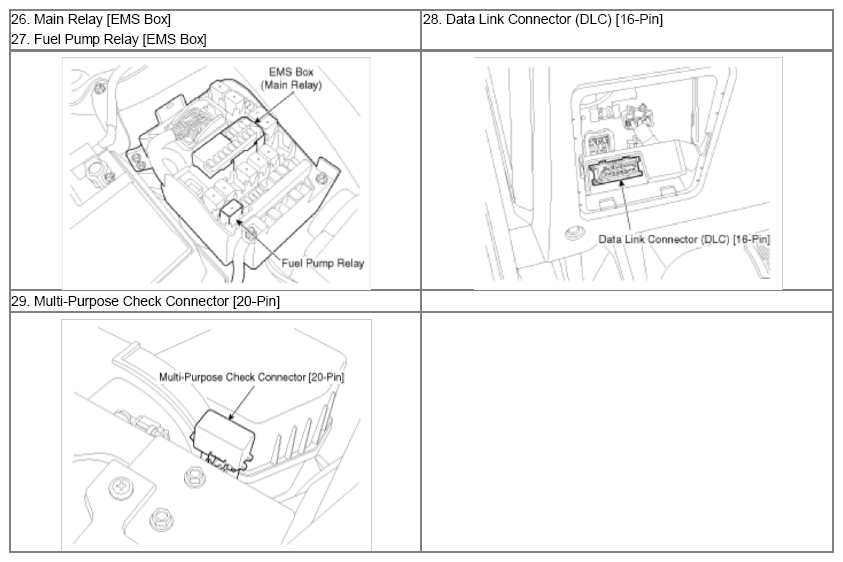

Fig 5: Identifying Engine Control System Components (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
