Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform: [ISG]

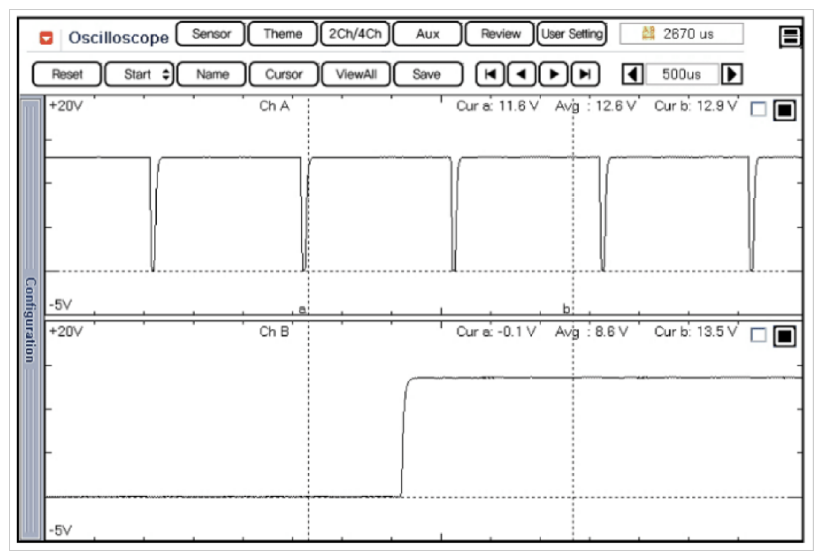

Fig 1: Display Crankshaft Position Sensor And Camshaft Position Sensor Waveforms (ISG)

Courtesy of KIA MOTORS AMERICA, INC.

This example shows a typical Crankshaft Position Sensor (CKPS) and Camshaft Position Sensor (CMPS) waveform at idle.
