Circuit Diagram: (M/T)

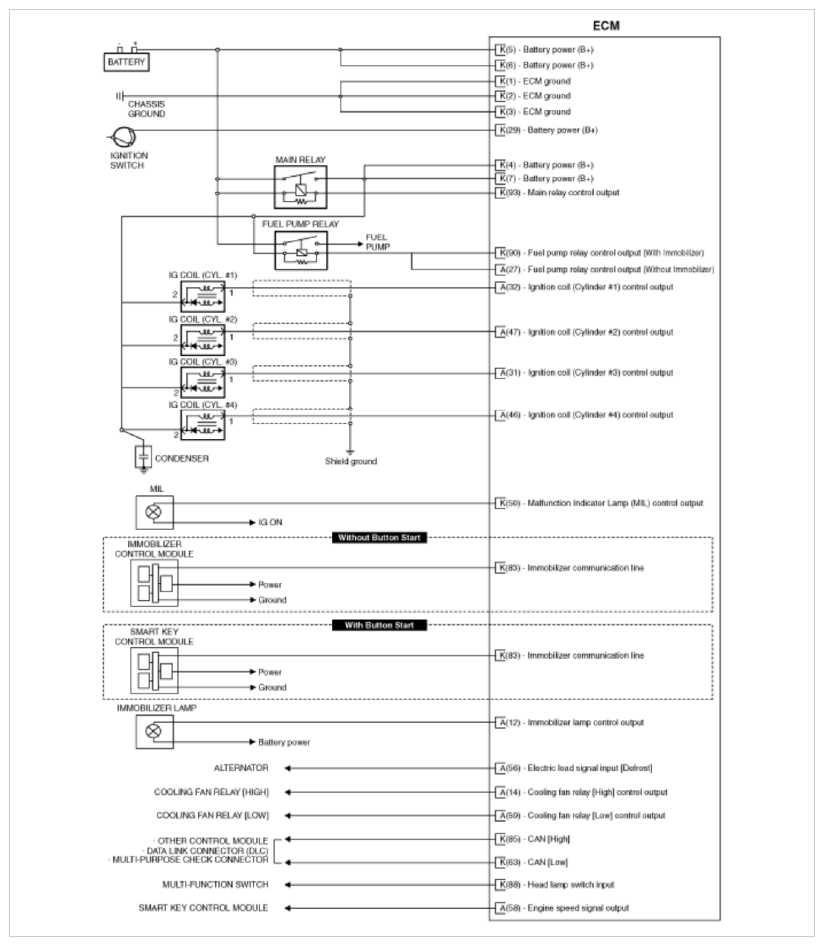

Fig 1: ECM Circuit Diagram (M/T; 1 Of 4)
G09779220Courtesy of KIA MOTORS AMERICA, INC.

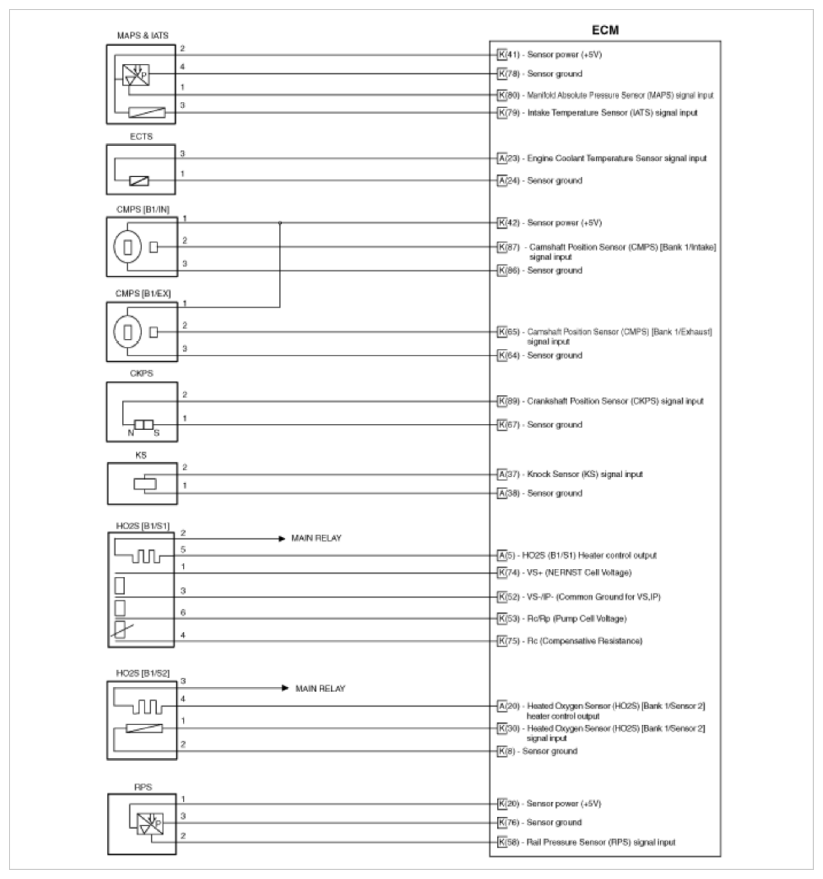

Fig 2: ECM Circuit Diagram (M/T; 2 Of 4)
G09779221Courtesy of KIA MOTORS AMERICA, INC.

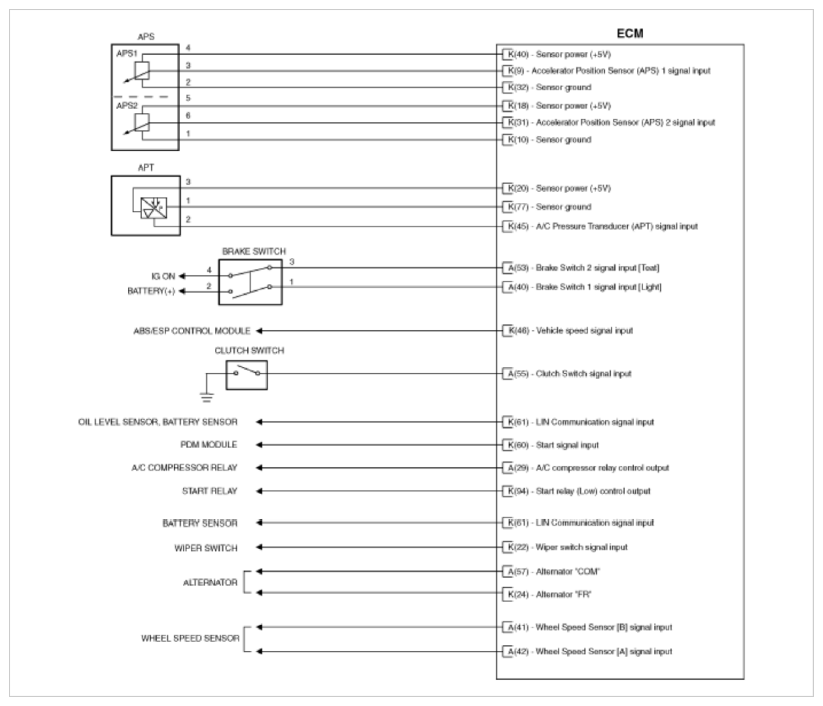

Fig 3: ECM Circuit Diagram (M/T; 3 Of 4)
G09779222Courtesy of KIA MOTORS AMERICA, INC.

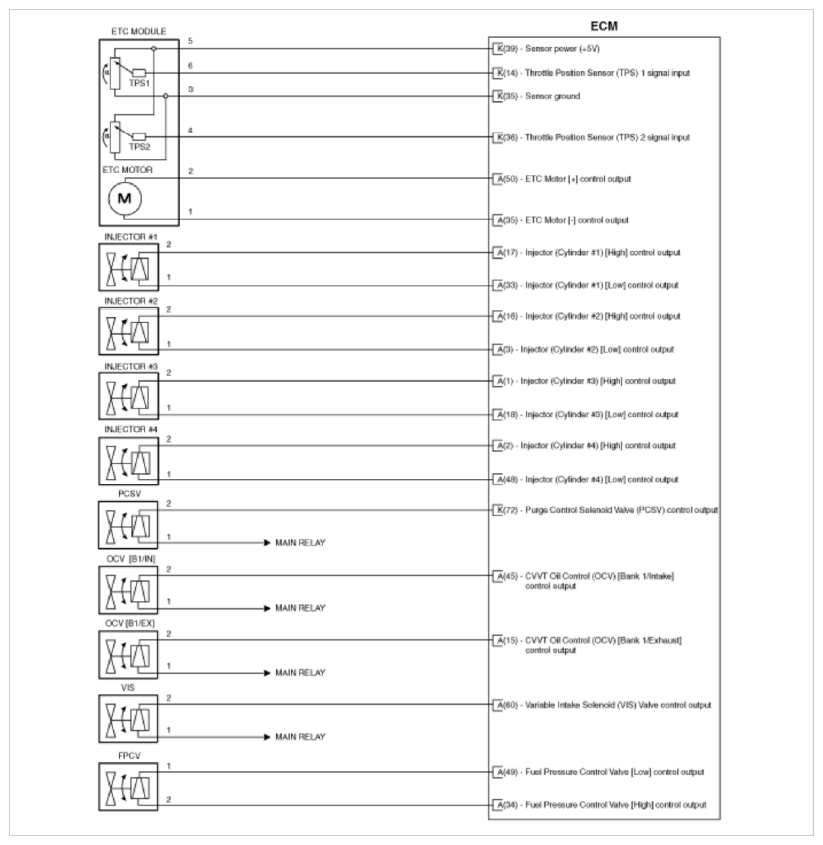

Fig 4: ECM Circuit Diagram (M/T; 4 Of 4)
G09779223Courtesy of KIA MOTORS AMERICA, INC.
