[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (B) after removing the clip (A).
  3. Remove the installation bolt (C), and then remove the sensor.

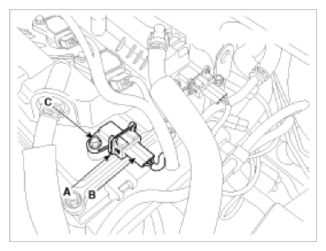

    Fig 1: Camshaft Position Sensor Connector, Bolt & Clip (Bank 1/Intake)
    G09748754Courtesy of KIA MOTORS AMERICA, INC.
