Crankshaft Position Sensor (CKPS): Troubleshooting: Waveform

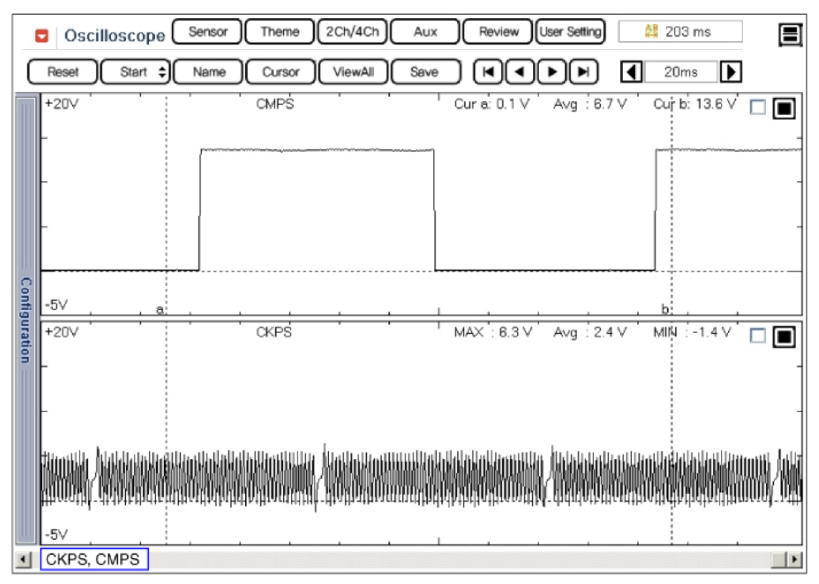

Fig 1: Display - Crankshaft Position Sensor (CKPS) Waveform (1 Of 2)
G09748745Courtesy of KIA MOTORS AMERICA, INC.

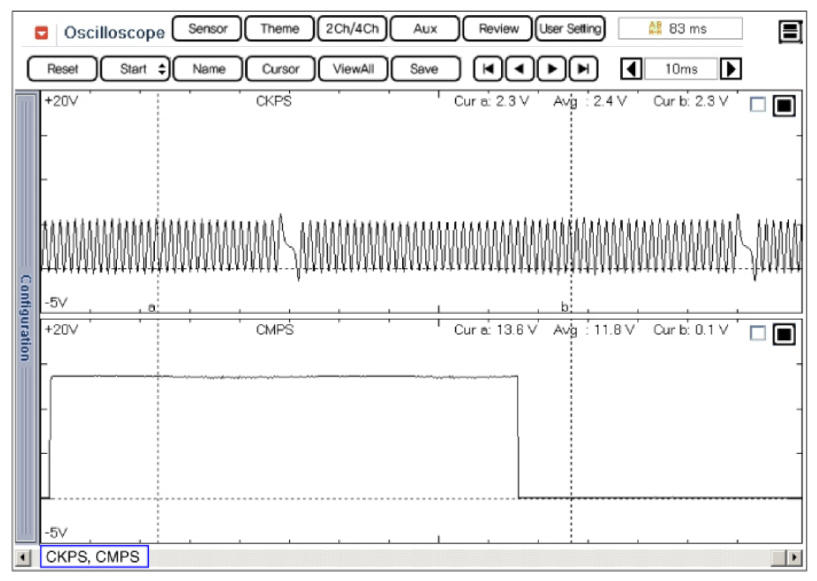

Fig 2: Display - Crankshaft Position Sensor (CKPS) Waveform (2 Of 2)
G09748746Courtesy of KIA MOTORS AMERICA, INC.
