Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose (Refer to "INTAKE & EXHAUST SYSTEM ").
  3. Disconnect the ETC module connector (A).

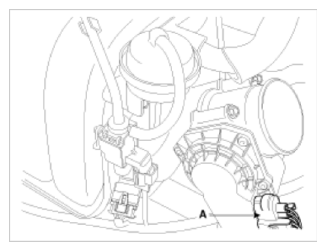

    Fig 1: ETC Module Connector
    G09748730Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the coolant hoses (B).
  5. Remove the installation bolts (C), and then remove the ETC module from the engine.

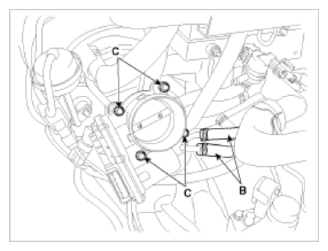

    Fig 2: Coolant Hoses & Installation Bolts
    G09748731Courtesy of KIA MOTORS AMERICA, INC.
