Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat.

    (Refer to "REAR SEAT ASSEMBLY ")

  3. Remove the fuel pump service cover (A).

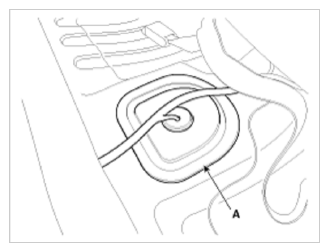

    Fig 1: Fuel Pump Service Cover
    G09748784Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.

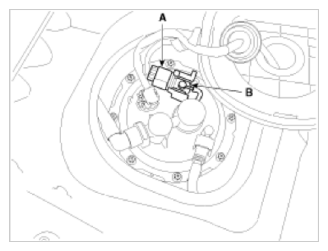

    Fig 2: Fuel Tank Pressure Sensor & Connector
    G09748785Courtesy of KIA MOTORS AMERICA, INC.
