Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  4. Remove the valve (C) from the surge tank after pulling it.

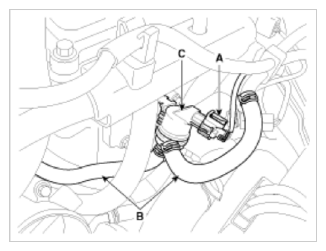

    Fig 1: Purge Control Solenoid Valve Connector And Hoses
    G09748794Courtesy of KIA MOTORS AMERICA, INC.
