Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

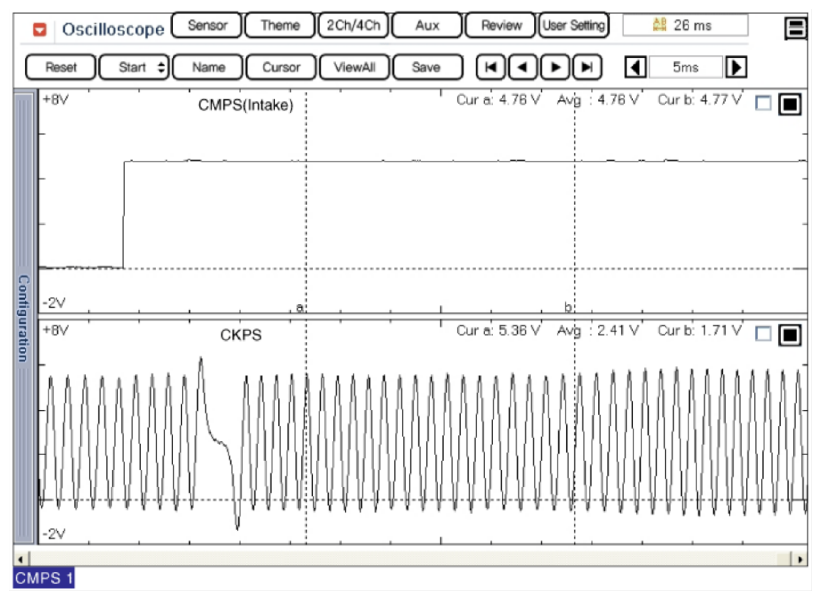

Fig 1: CMPS (Intake) And CKPS Signal Waveform (1 Of 2)
G09772975Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: CMPS (Intake) And CKPS Signal Waveform (2 Of 2)
G09772976Courtesy of KIA MOTORS AMERICA, INC.
