Components Location

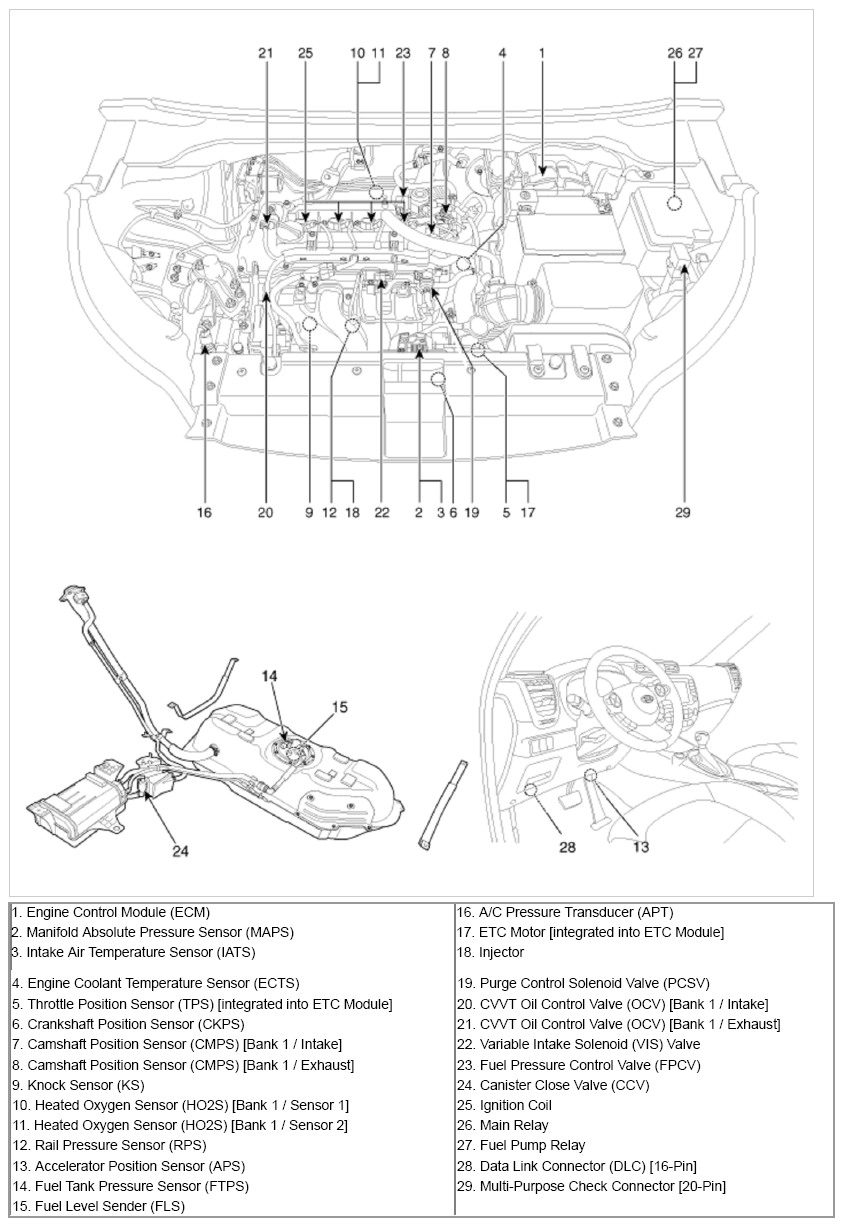

Fig 1: Engine Control/Fuel System Components Location (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

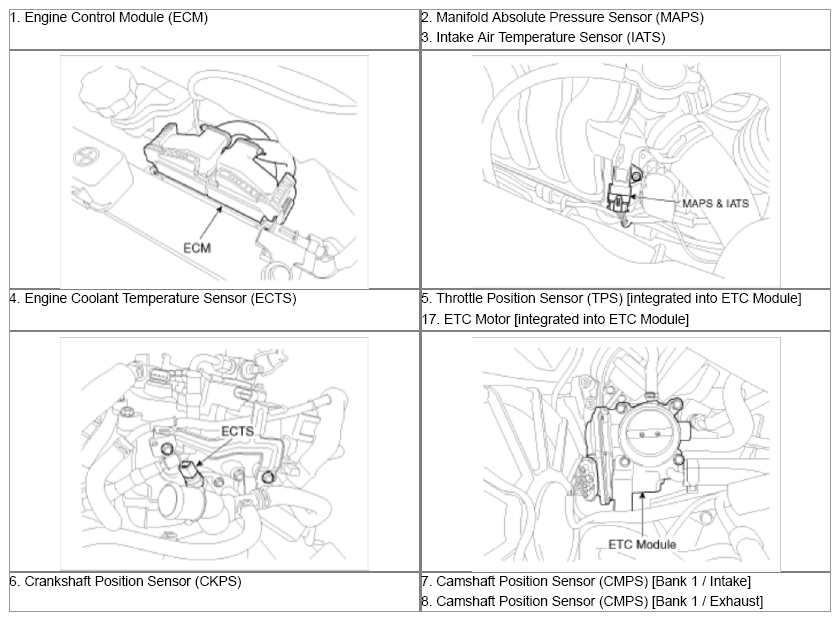

Fig 2: Engine Control/Fuel System Components Location (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

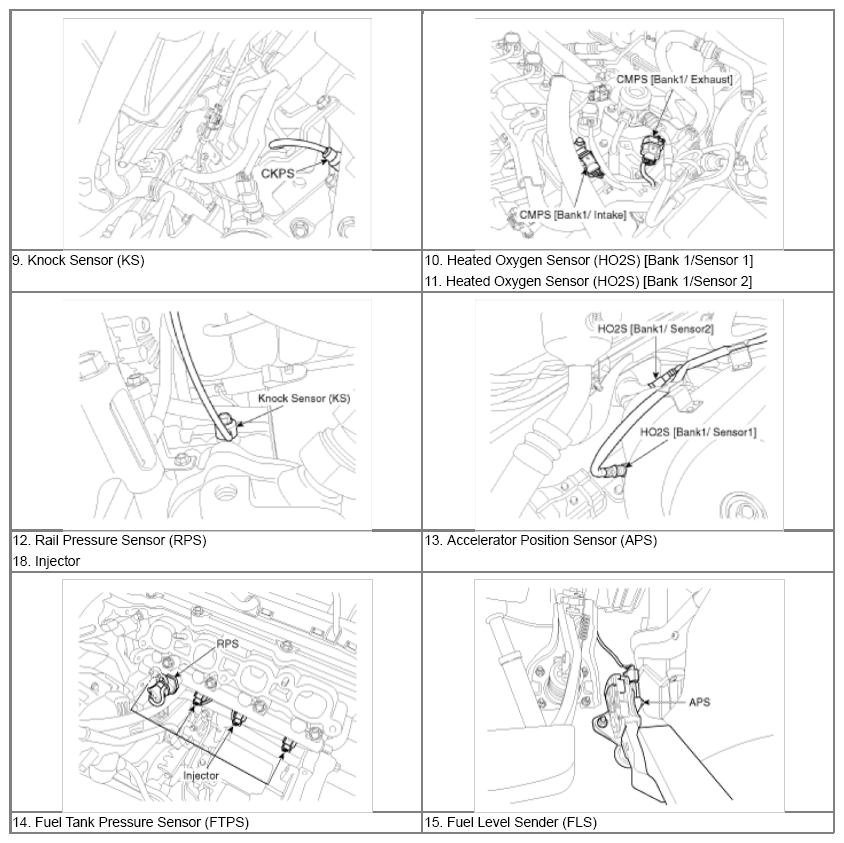

Fig 3: Engine Control/Fuel System Components Location (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

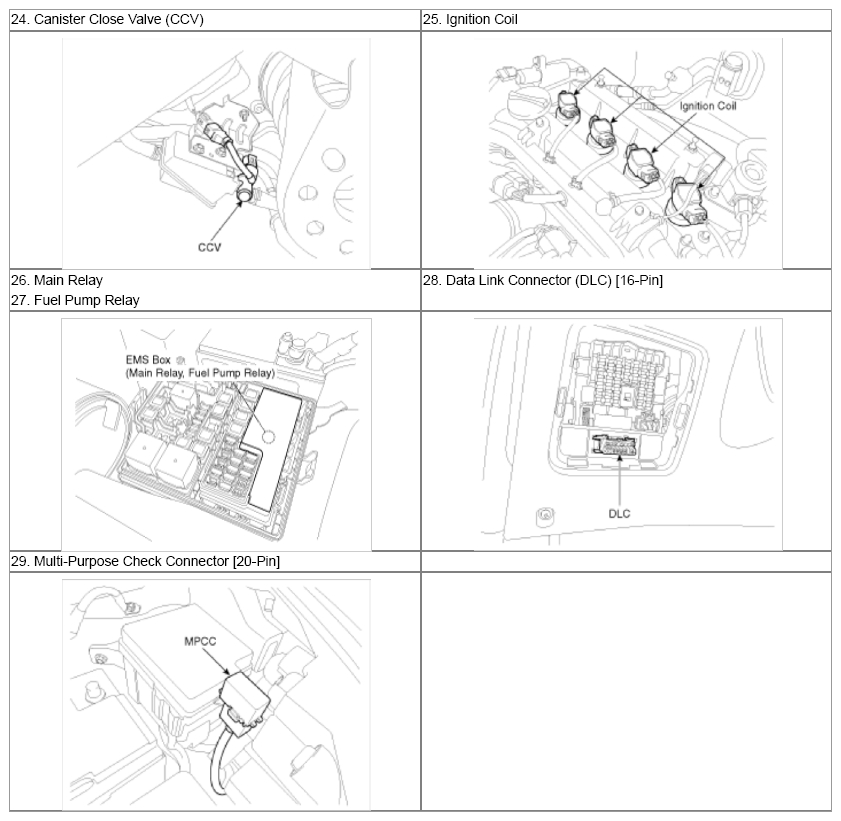

Fig 4: Engine Control/Fuel System Components Location (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

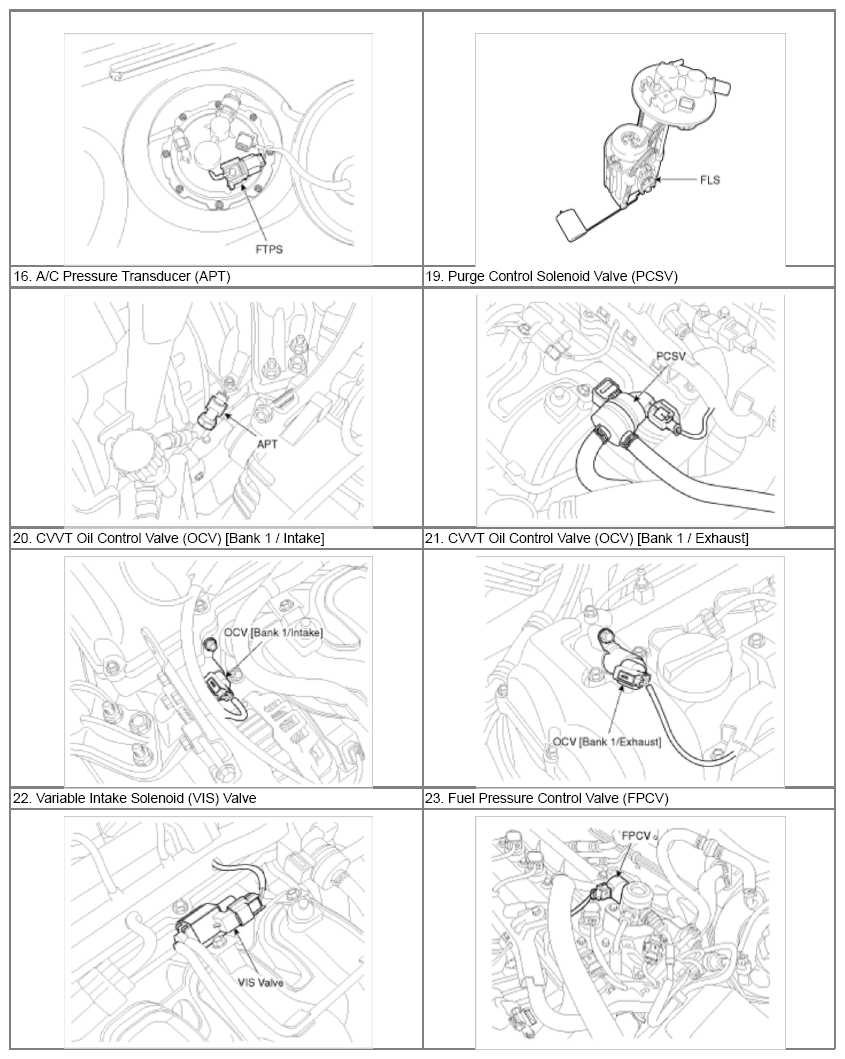

Fig 5: Engine Control/Fuel System Components Location (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
