Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the engine room under cover.

    (Refer to "ENGINE ROOM UNDER COVER ")

  3. Disconnect the crankshaft position sensor connector (A) and remove the sensor (B) after removing the installation bolt.

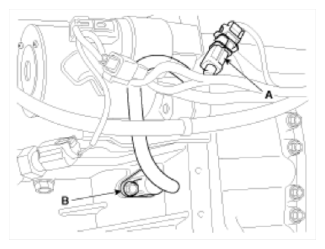

    Fig 1: Identifying Crankshaft Position Sensor Connector And Sensor
    G09772973Courtesy of KIA MOTORS AMERICA, INC.
