Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    (Refer to "AIR CLEANER ")

  3. Disconnect the ETC module connector (A).
  4. Disconnect the coolant hoses (B) and vapor hose (C).
  5. Remove the mounting bolts (D), and then remove the ETC module from the engine.

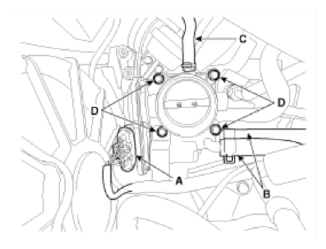

    Fig 1: Identifying ETC Module Connector, Coolant Hoses, Vapor Hose And Mounting Bolts
    G09772951Courtesy of KIA MOTORS AMERICA, INC.
