Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the battery. (Refer to BATTERY )
  3. Disconnect the ECM Connector (A).
  4. Remove the mounting bolts (B) and nut (C), and then remove the ECM bracket assembly.

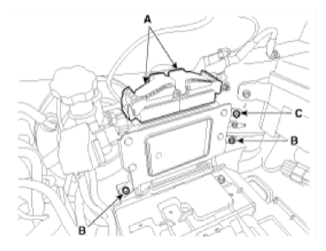

    Fig 1: Identifying ECM Connector, Mounting Bolts And Nut
    G09772943Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the ECM after removing the nuts (A) from the bracket.

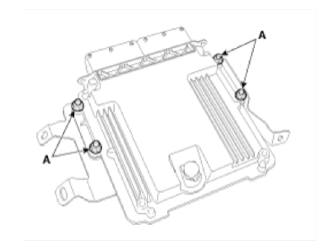

    Fig 2: Identifying Bracket Nuts
    G09772944Courtesy of KIA MOTORS AMERICA, INC.
