Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the engine coolant temperature sensor connector (A).

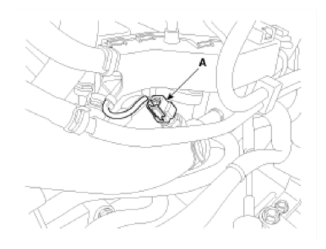

    Fig 1: Identifying Engine Coolant Temperature Sensor Connector
    G09772965Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the ignition coil connector (A) and CMPS connector (B).
  4. Unfasten the harness bracket (C) and make a gap for removing high pressure fuel pipe by moving the bracket (C).

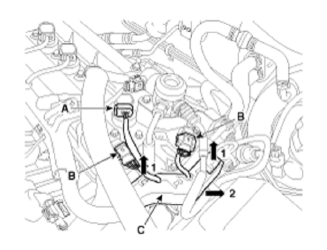

    Fig 2: Disconnecting Ignition Coil Connector And CMPS Connector
    G09772966Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the vacuum pipe mounting bolts (A).
  6. Remove the engine coolant temperature sensor (B).

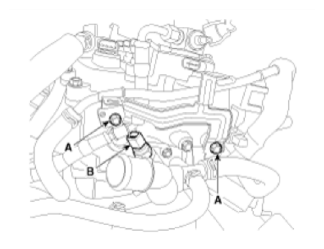

    Fig 3: Identifying Engine Coolant Temperature Sensor And Vacuum Pipe Mounting Bolts
    G09772967Courtesy of KIA MOTORS AMERICA, INC.
