Circuit Diagram

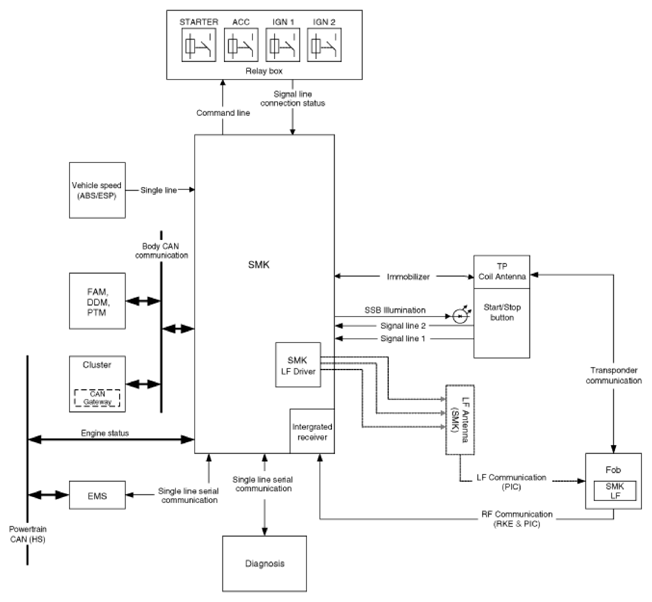

Fig 1: Button Engine Start System Schematic Diagrams

G11792619

Courtesy of KIA MOTORS AMERICA, INC.
