Circuit Diagram

(M/T)

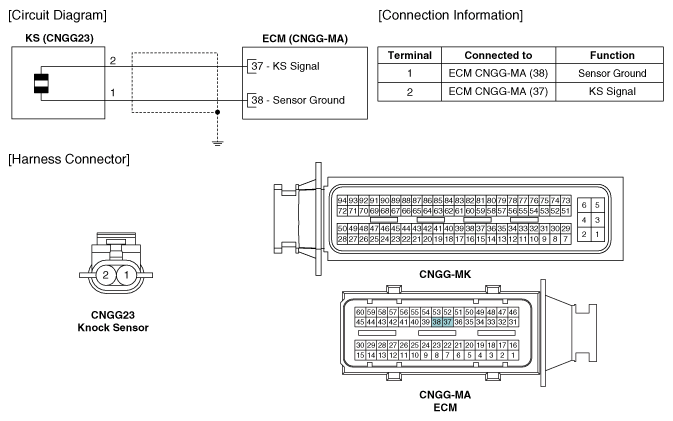

Fig 1: Knock Sensor Circuit Diagram (M/T)
G11796934Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

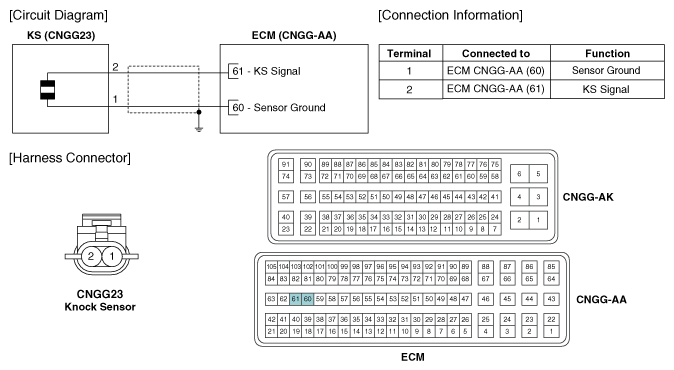

Fig 2: Knock Sensor Circuit Diagram (A/T)
G11796935Courtesy of KIA MOTORS AMERICA, INC.
