Circuit Diagram

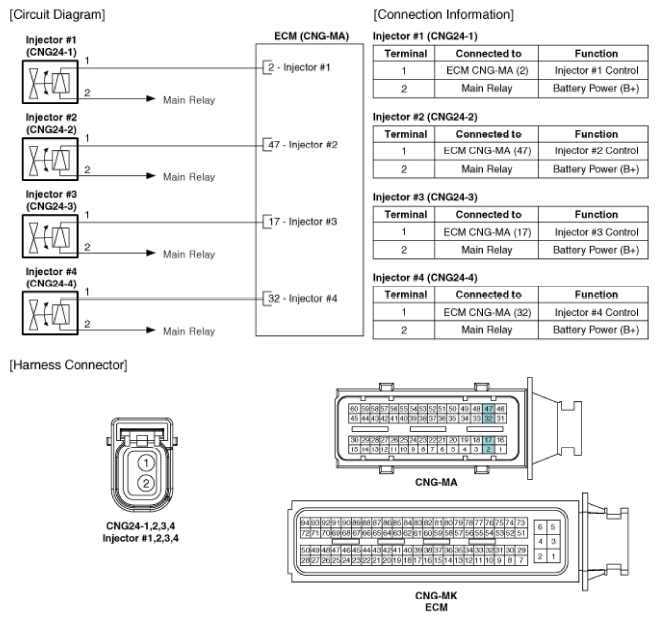

(M/T)

Fig 1: Injector Circuit Diagram (M/T)

G11793877

Courtesy of KIA MOTORS AMERICA, INC.

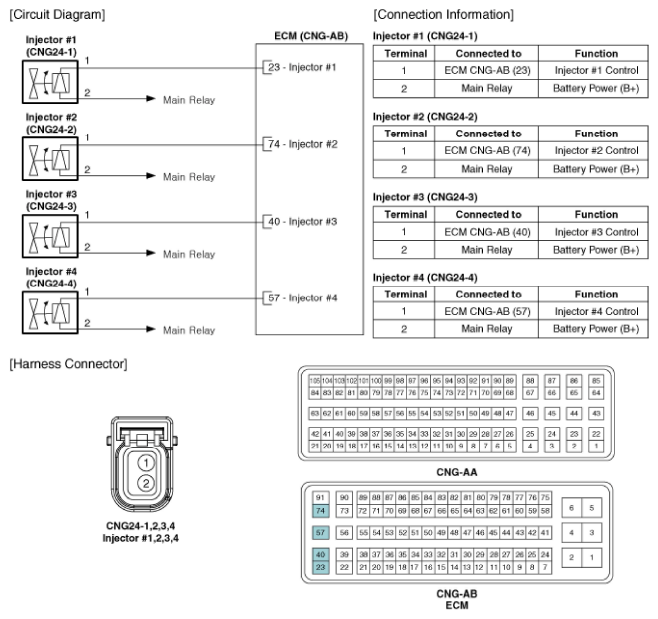

(A/T)

Fig 2: Injector Circuit Diagram (A/T)

G11793878

Courtesy of KIA MOTORS AMERICA, INC.
