Components And Components Location: Components

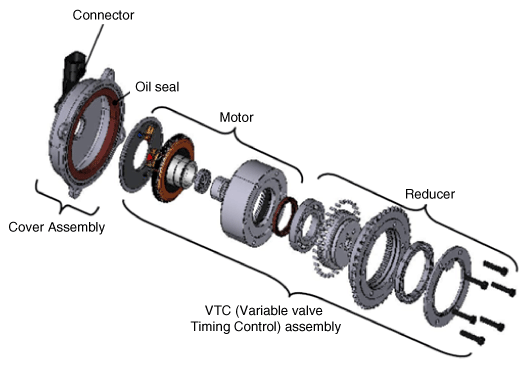

Appearance of E-CVVT is similar to that of hydraulic CVVT. Connector driving the DC motor and protection cover protecting the motor are mounted on the upper part. DC motor driving the CVVT is mounted inside and covering part is sealed in order to protect oil from flowing inside.
