Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Detach the gear boots (A).
    G11952055Courtesy of

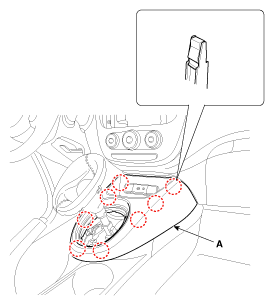

  3. Using a screwdriver or remover, remove the console upper cover (A).
    G11952056Courtesy of
  4. Disconnect the connectors (A) from the console upper cover.
    Fig 1: Console Upper Cover Connector
    G11952057Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the start/stop button (A) after loosening the mounting screws.
    G11952058Courtesy of
