Home >> Kia >> 2016 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Engine Control Module (ECM) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

(M/T)

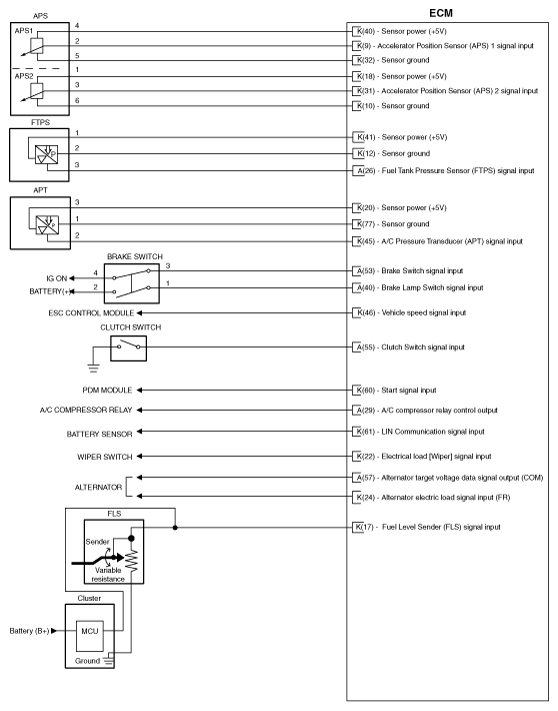

G11950048

Courtesy of

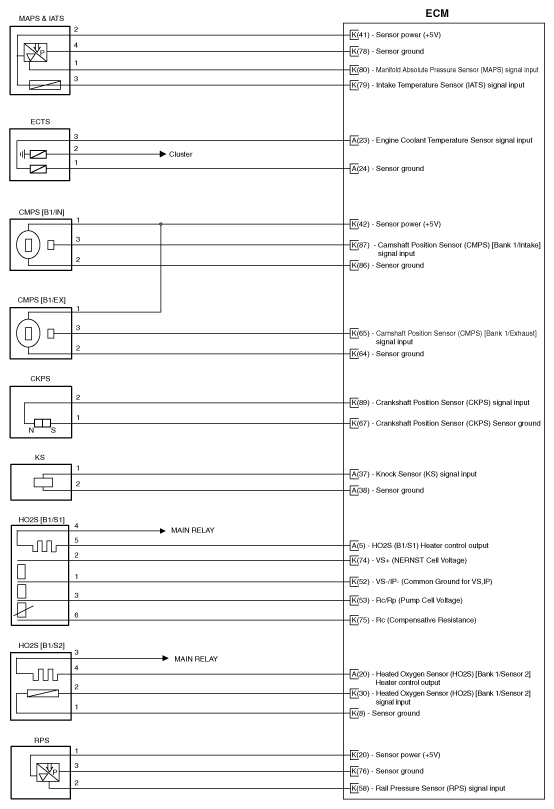

G11950049

Courtesy of

G11950050

Courtesy of

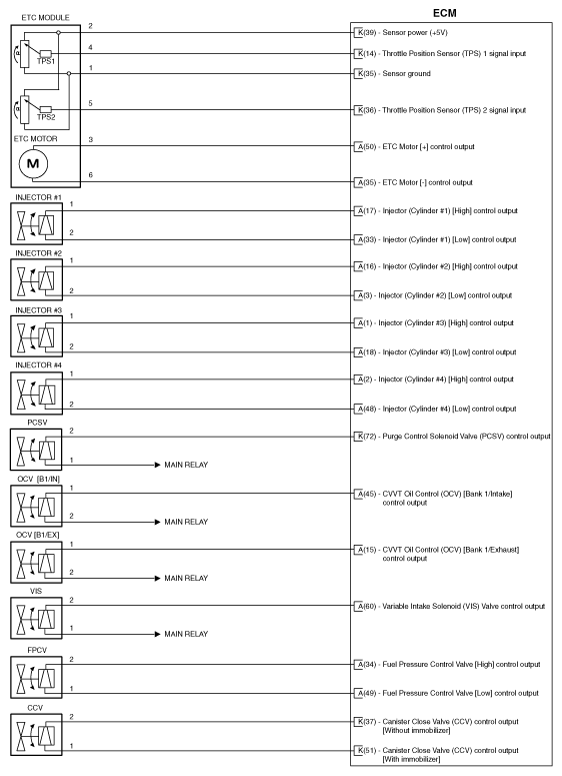

G11950051

Courtesy of

(A/T)

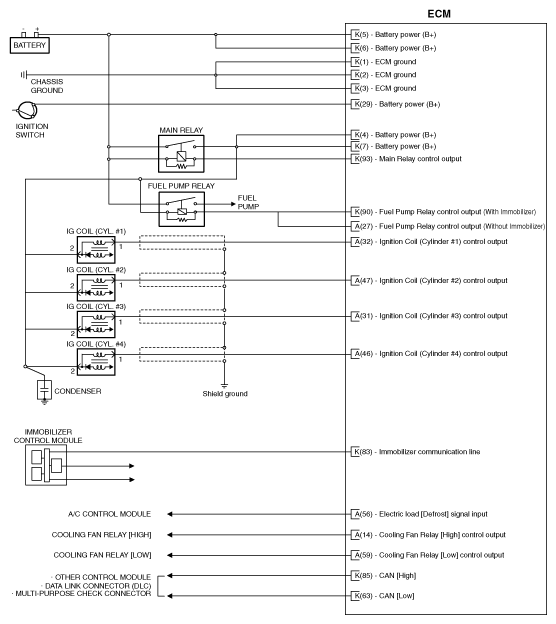

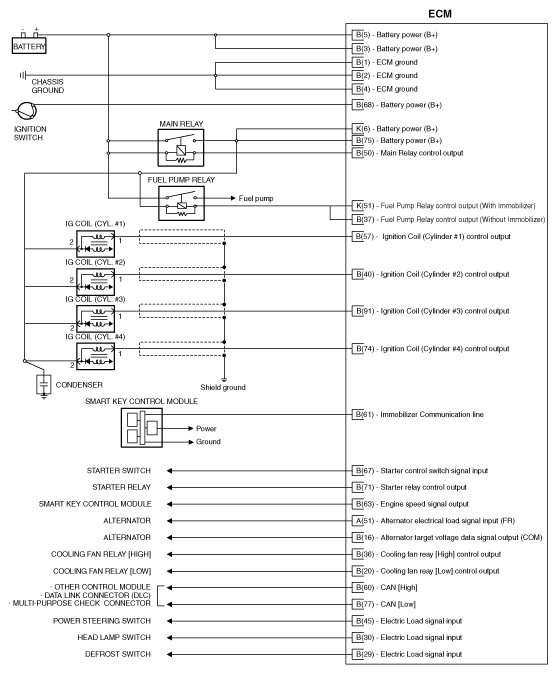

G11950052

Courtesy of

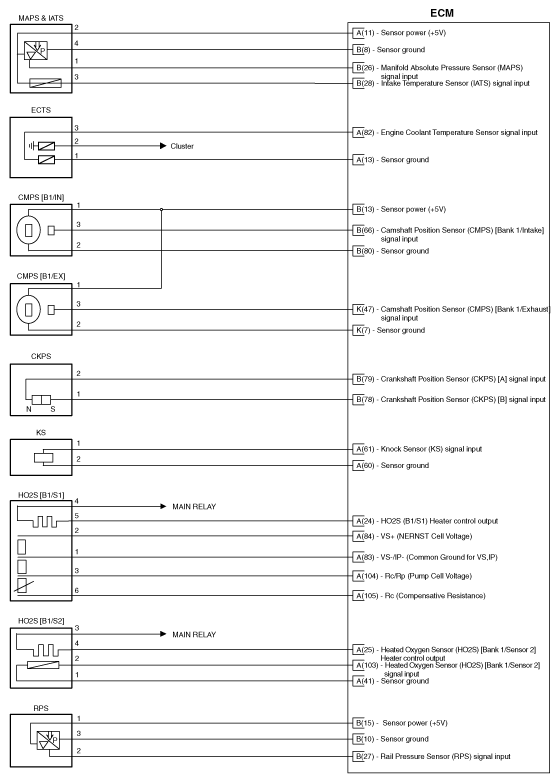

G11950053

Courtesy of

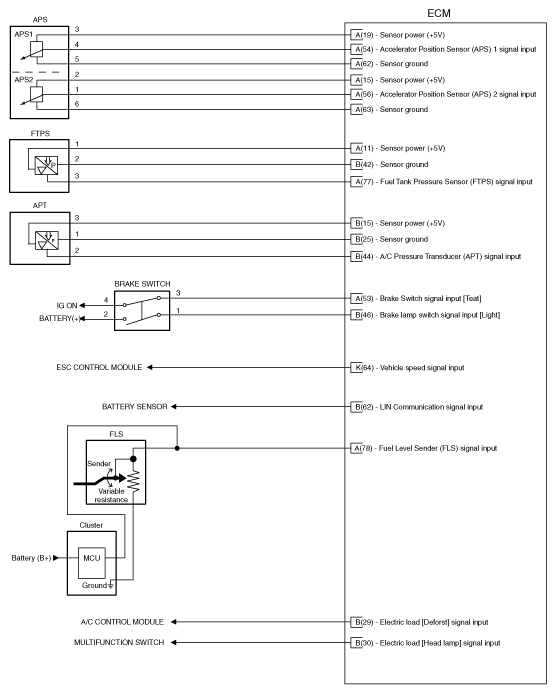

G11950054

Courtesy of

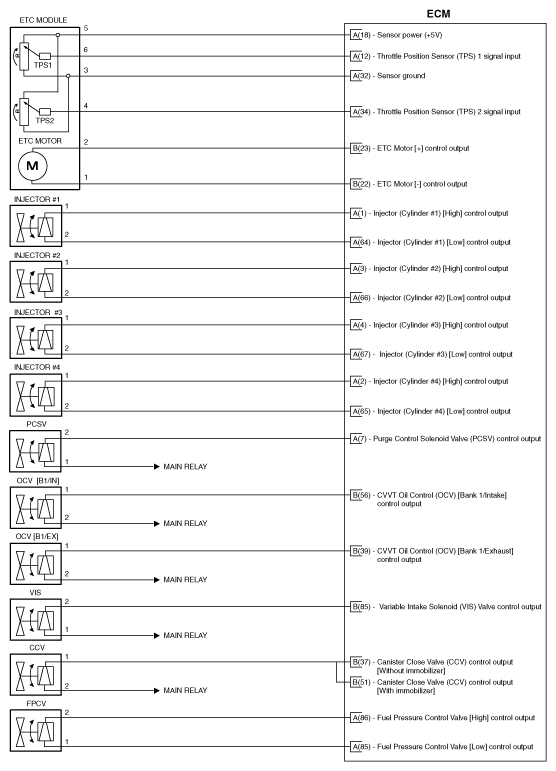

G11950055

Courtesy of
