CVVT Oil Control Valve (OCV)
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

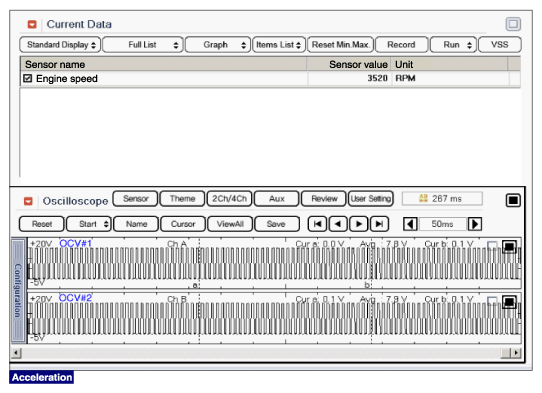

Fig 1: Screen Display - CVVT Oil Control Valve Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

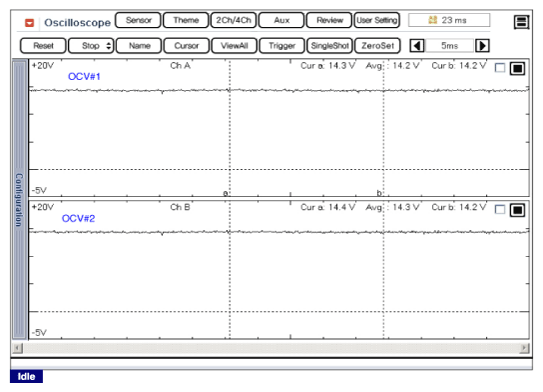

Fig 2: Screen Display - CVVT Oil Control Valve Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
