Wave Form

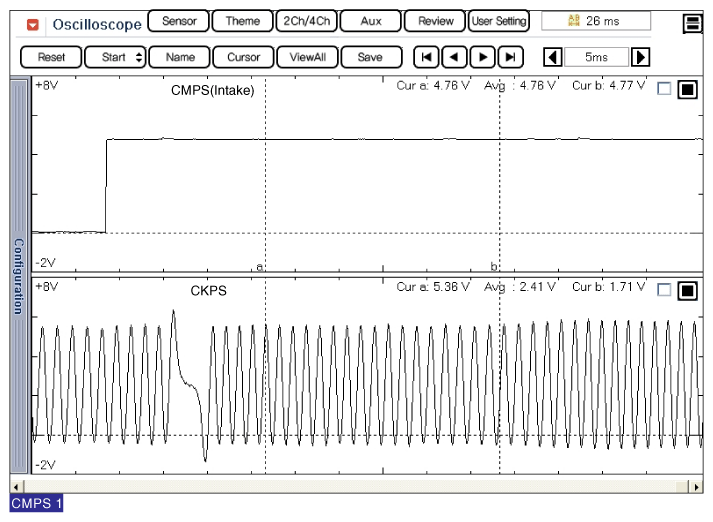

Fig 1: Screen Display - Camshaft Position Sensor 1 Signal Waveform
G12162431Courtesy of KIA MOTORS AMERICA, INC.

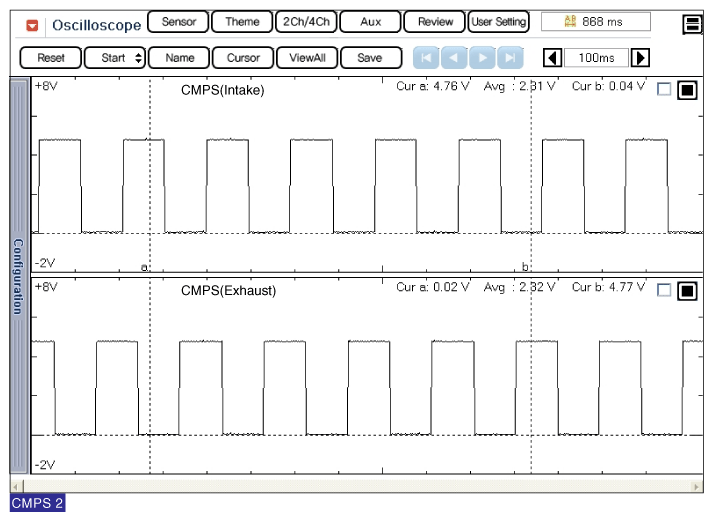

Fig 2: Screen Display - Camshaft Position Sensor 2 Signal Waveform
G12162432Courtesy of KIA MOTORS AMERICA, INC.
