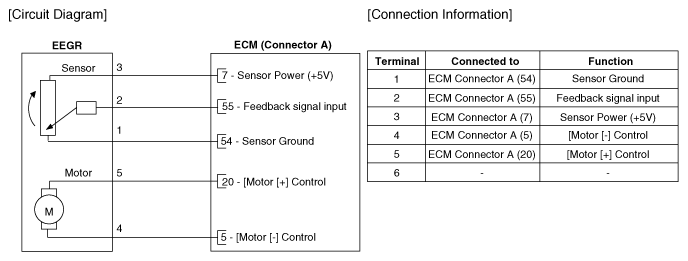

Home >> Kia >> 2017 >> Niro LX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Electric EGR Control Valve >> Schematic Diagrams >> Circuit Diagram >> Notes
