Repair Procedures: Installation
NOTE:
After replacing the Electric EGR control valve, MUST perform the
"Component Change Routine" procedure. Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is over.
- Turn the ignition switch OFF.
- Connect the KDS/GDS to Data Link Connector (DLC).
- Turn ignition switch ON.
- Select "Vehicle, Model year, Engine, System".
- Select "Vehicle S/W Management".
- Select "Component Change Routine".

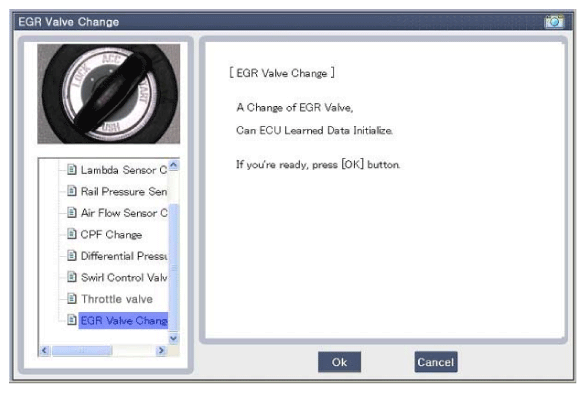

- Select "EGR Valve Change".

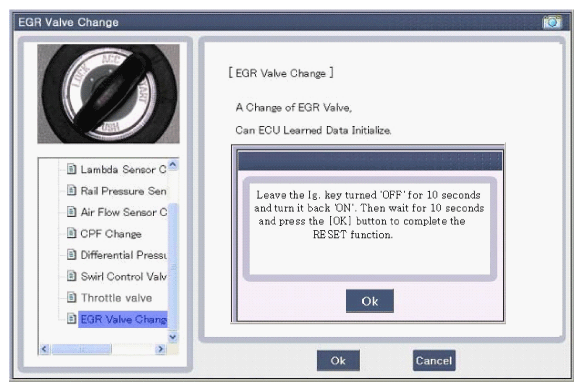

- Perform the procedure in accordance with the message
