Fuel Tank Pressure Sensor (FTPS): Specifications: Specification

FUEL TANK PRESSURE SENSOR SPECIFICATIONS

Pressure [kPa (kgf/cm² , psi)]	Output Voltage (V) [Vref = 5V]
-20	0.5
0	1.6
15	2.5
50	4.5

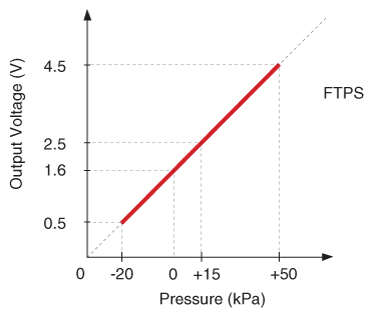

G12347312
