Components And Components Location: Components

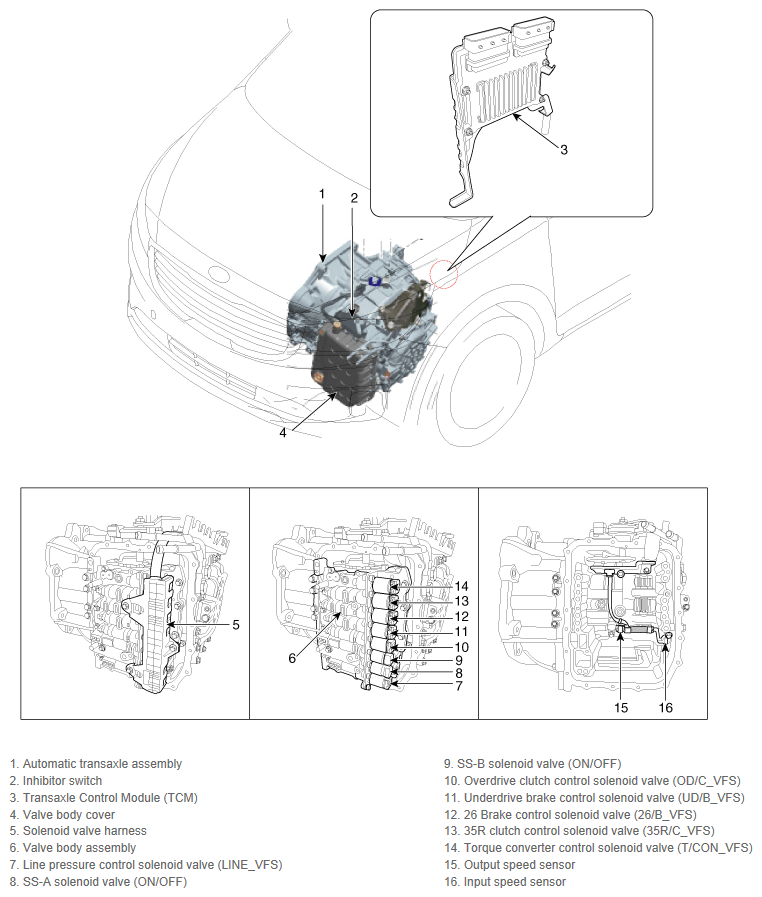

Fig 1: Automatic Transaxle Control System Components Location (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Automatic Transaxle Control System Components Location (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
