Wave Form

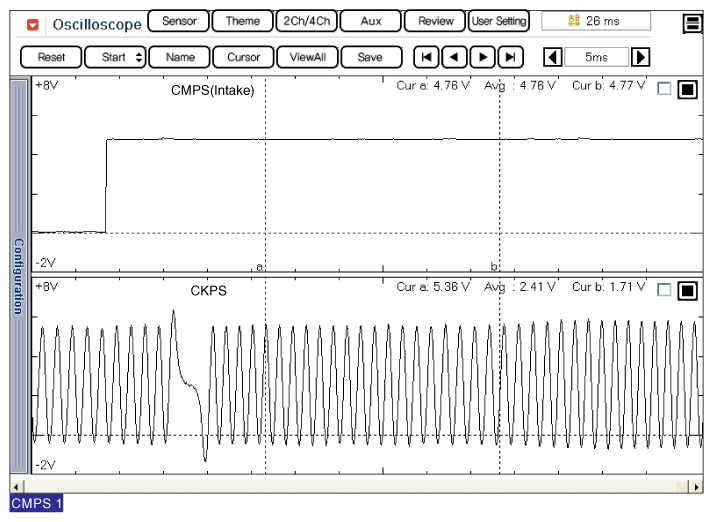

Fig 1: Scantool Display - Signal Waveform Of CMPS And CKPS (1 Of 2)
G12238631Courtesy of KIA MOTORS AMERICA, INC.

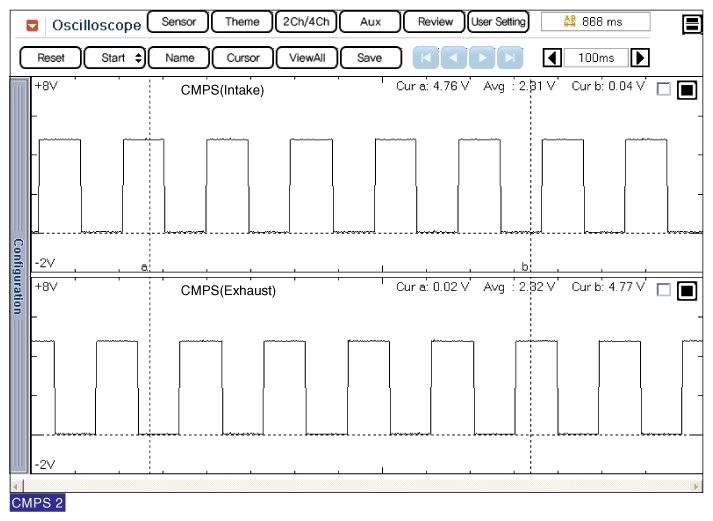

Fig 2: Scantool Display - Signal Waveform Of CMPS And CKPS (2 Of 2)
G12238632Courtesy of KIA MOTORS AMERICA, INC.
