Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

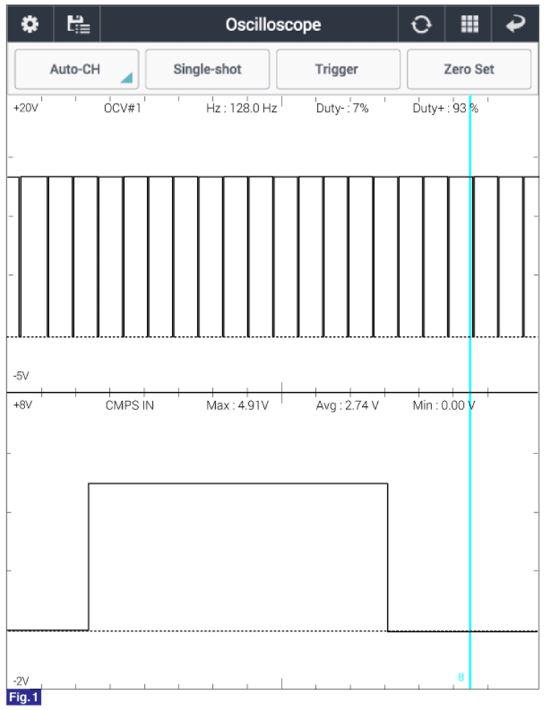

Fig 1: Screen Display - Camshaft Position Sensor 1 Signal Waveform

G00580893

Courtesy of KIA MOTORS AMERICA, INC.
