Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the battery.

    (Refer to Engine Electrical System - " BATTERY  ")

  3. Disconnect the ECM Connector (A).

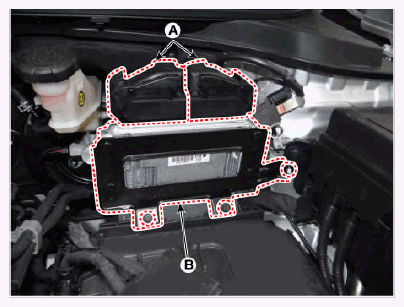

  4. Remove the mounting bolts and nut, and then remove the ECM bracket assembly (B).
    G12576511Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the ECM after removing the nuts (A) from the bracket.
    G12576512Courtesy of KIA MOTORS AMERICA, INC.
    G12576513Courtesy of KIA MOTORS AMERICA, INC.
