Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    Fig 1: Locating Key Warning Switch Connector
    G12271963Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Locating Ignition Switch Connector
    G12271964Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

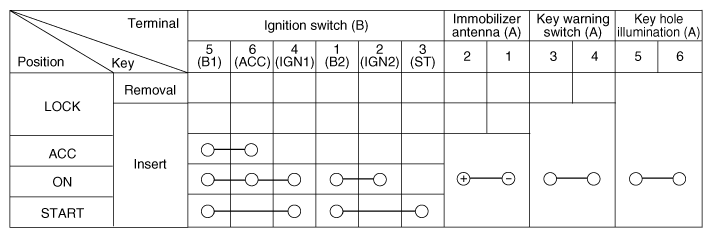

    Fig 3: Ignition Switch Connector Terminals Continuity Chart
    G12271965Courtesy of KIA MOTORS AMERICA, INC.
