Components Location

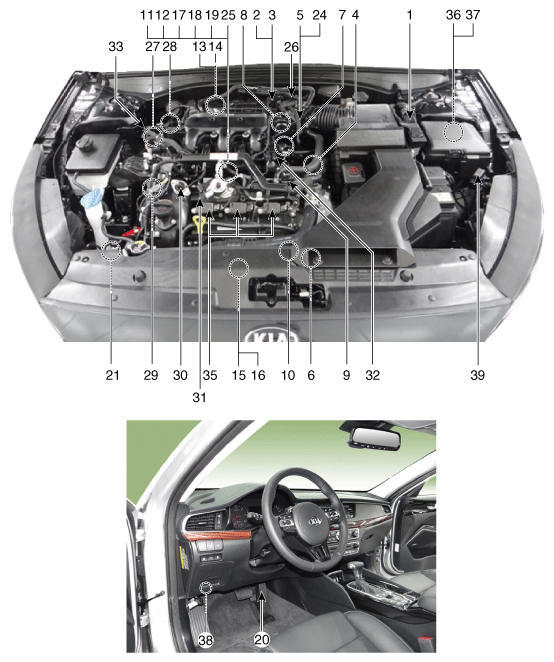

Fig 1: Engine Control System Components (1 Of 8)

G12290655

Courtesy of KIA MOTORS AMERICA, INC.

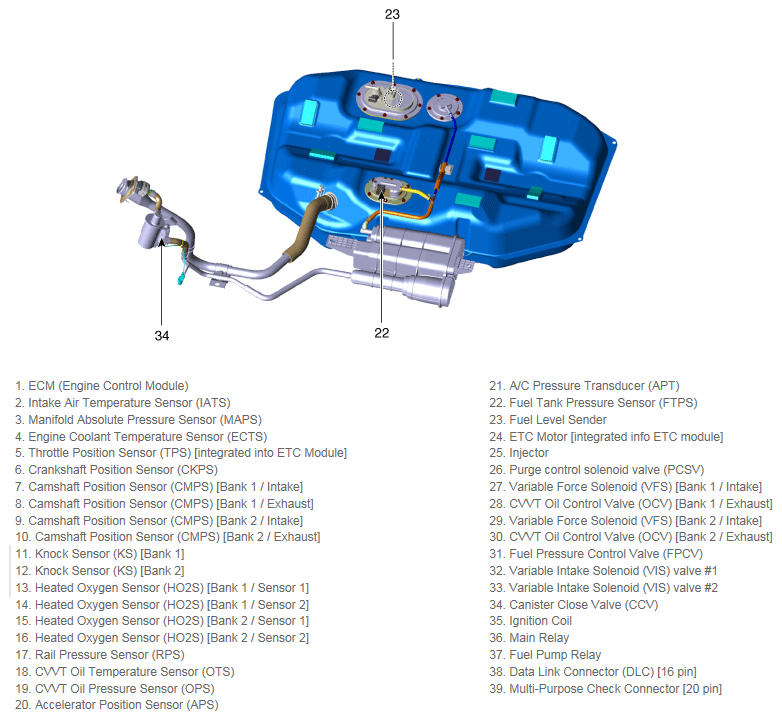

Fig 2: Engine Control System Components (2 Of 8)

G12290656

Courtesy of KIA MOTORS AMERICA, INC.

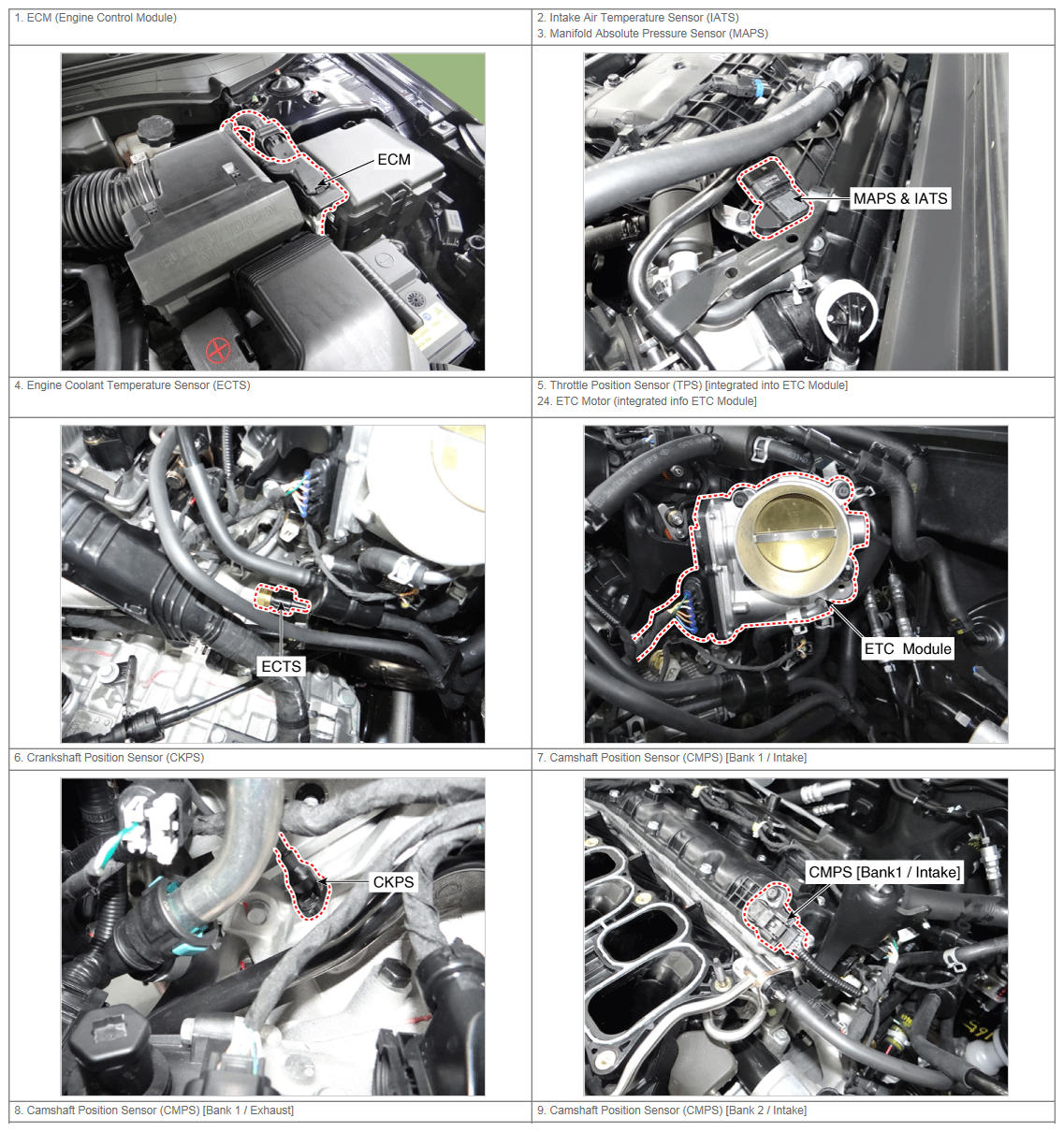

Fig 3: Engine Control System Components (3 Of 8)

G12290657

Courtesy of KIA MOTORS AMERICA, INC.

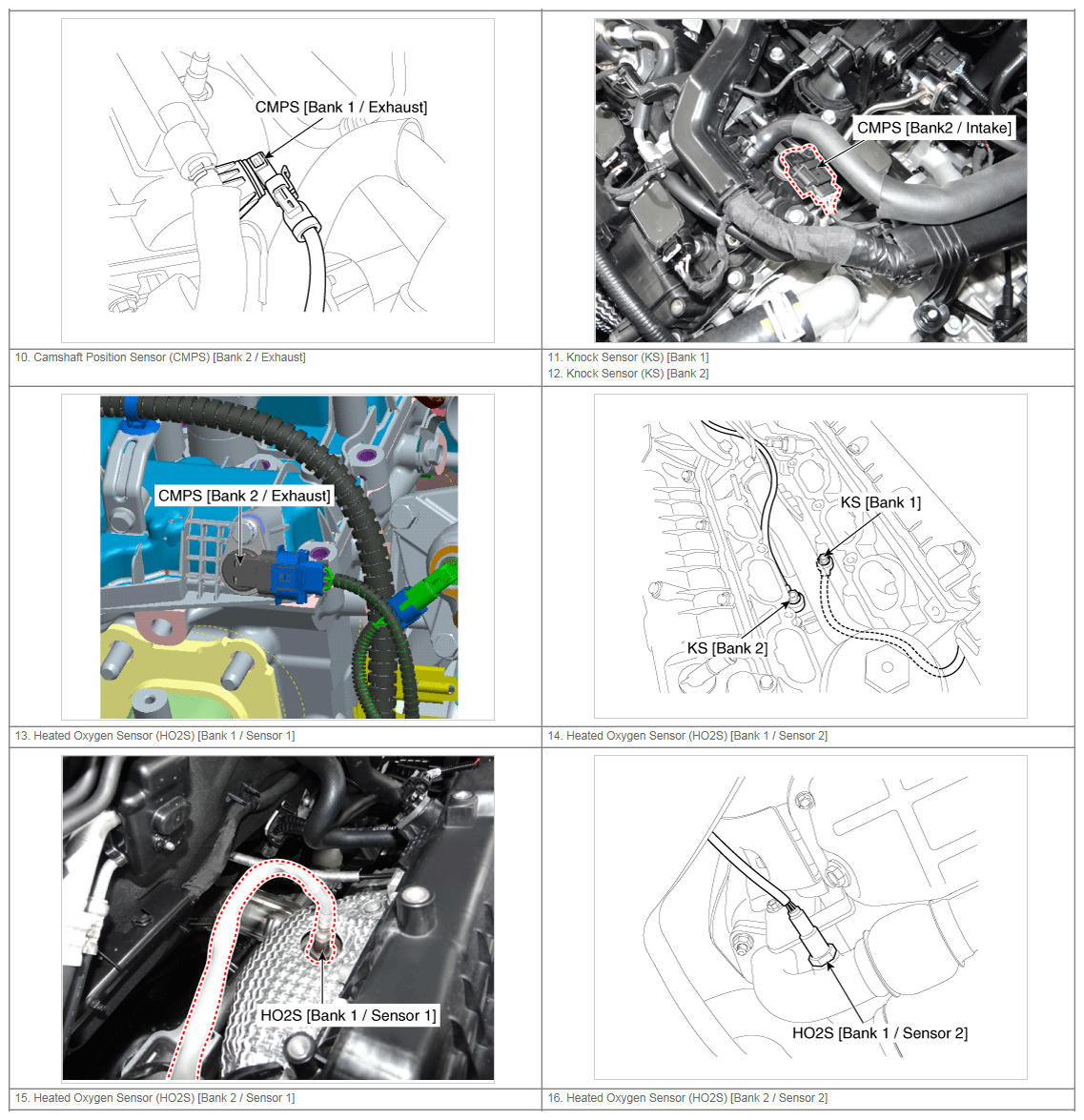

Fig 4: Engine Control System Components (4 Of 8)

G12290658

Courtesy of KIA MOTORS AMERICA, INC.

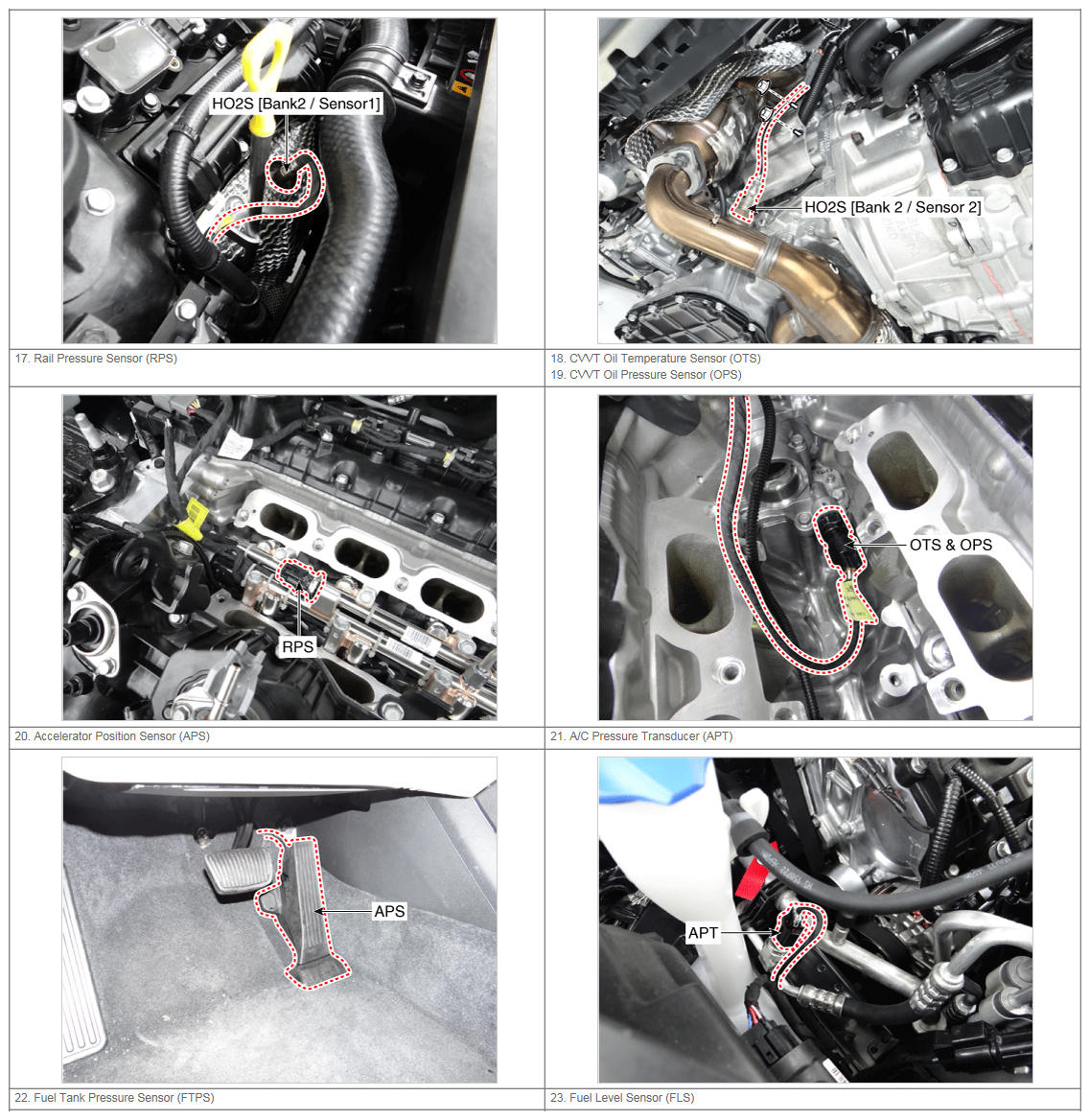

Fig 5: Engine Control System Components (5 Of 8)

G12290659

Courtesy of KIA MOTORS AMERICA, INC.

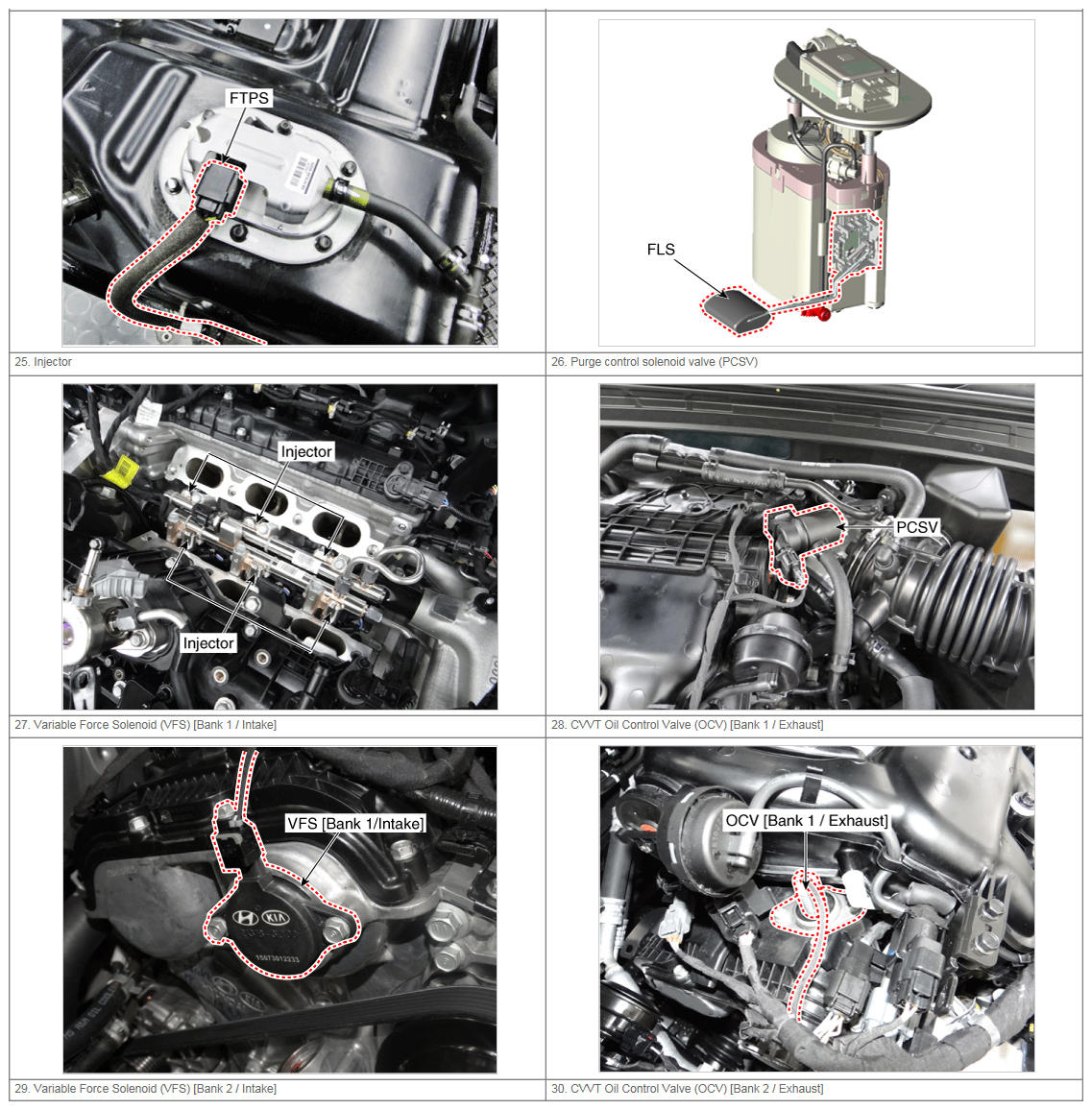

Fig 6: Engine Control System Components (6 Of 8)

G12290660

Courtesy of KIA MOTORS AMERICA, INC.

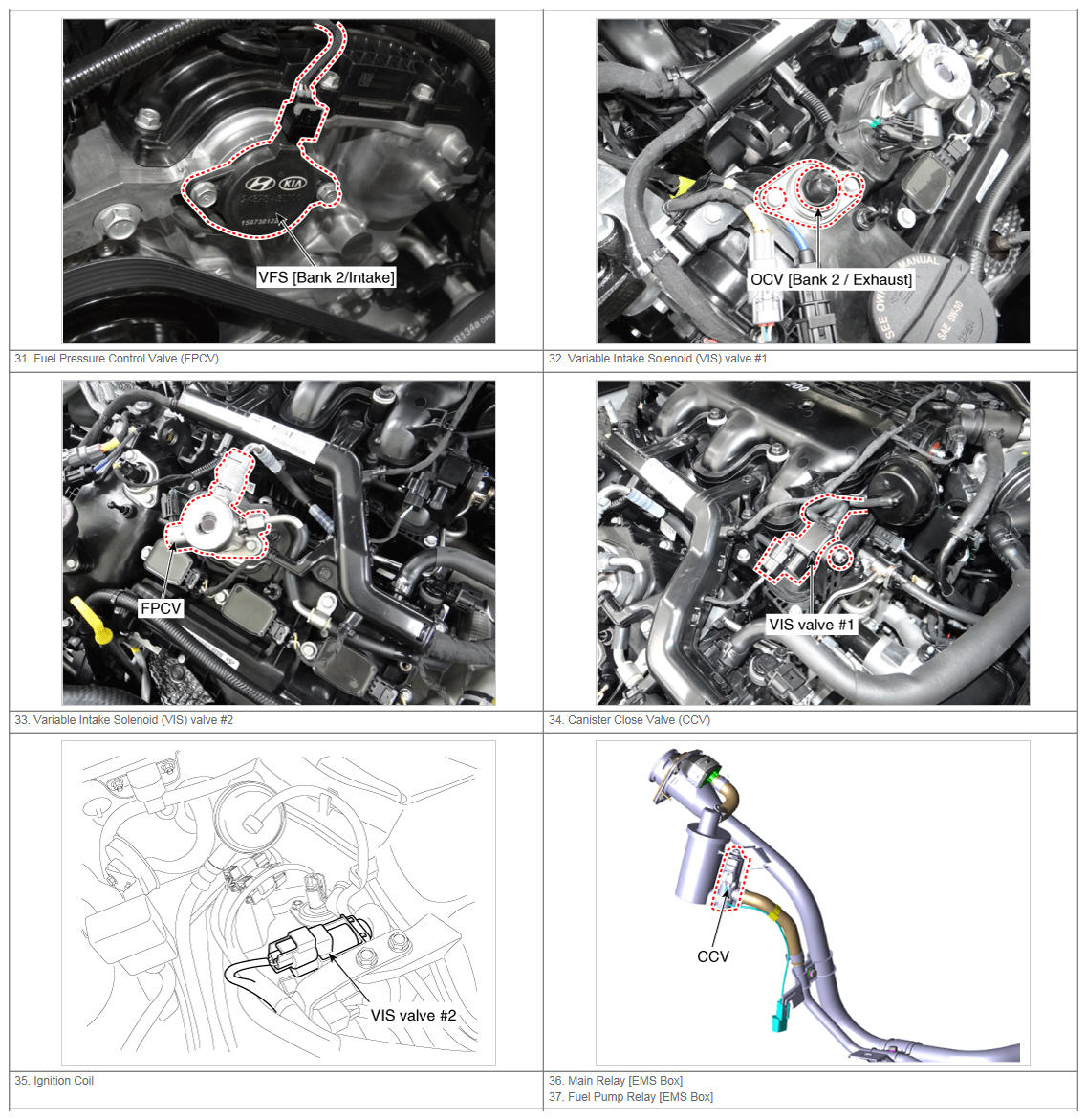

Fig 7: Engine Control System Components (7 Of 8)

G12290661

Courtesy of KIA MOTORS AMERICA, INC.

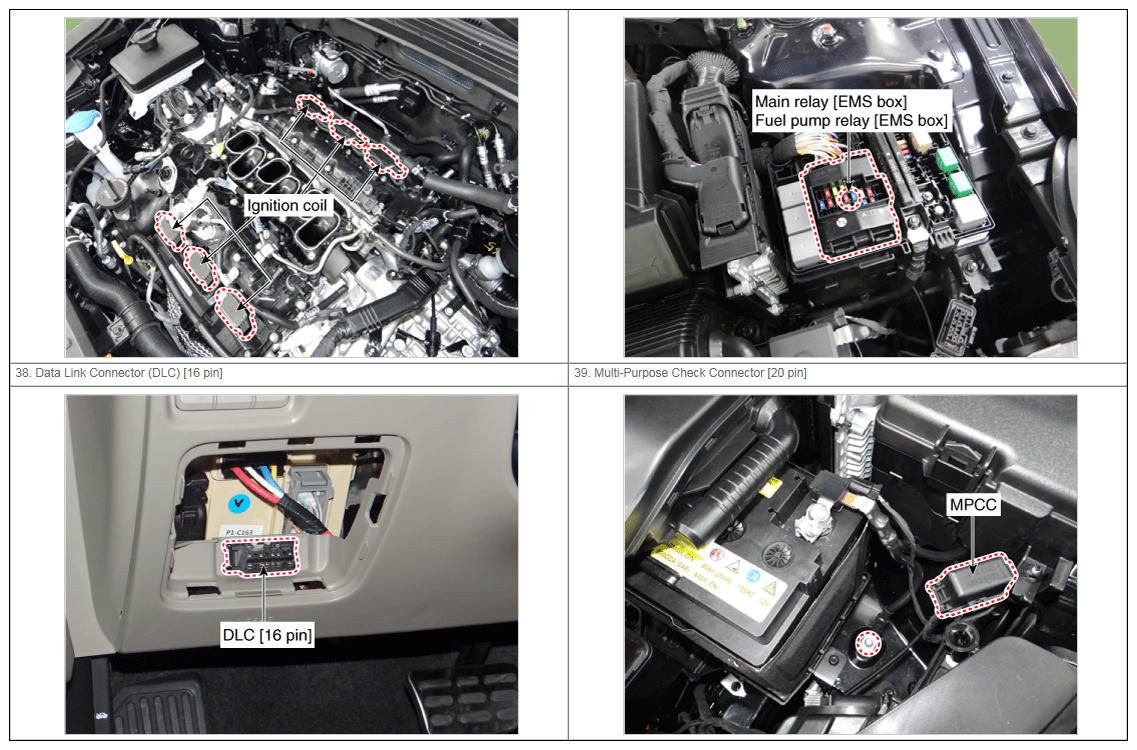

Fig 8: Engine Control System Components (8 Of 8)

G12290662

Courtesy of KIA MOTORS AMERICA, INC.
