Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

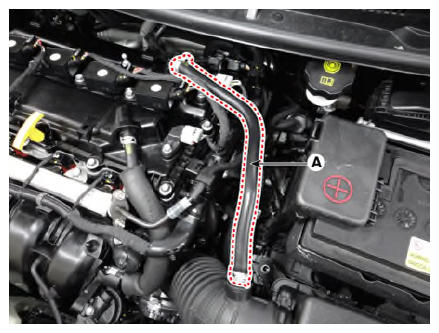

  2. Disconnect the breather hose (A).
    G12830278Courtesy of KIA MOTORS AMERICA, INC.

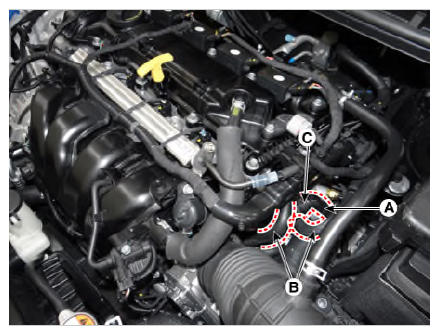

  3. Disconnect the purge control solenoid valve connector (A).
  4. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  5. Remove the valve (C) from the surge tank after pulling it.
    G12830279Courtesy of KIA MOTORS AMERICA, INC.
