Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

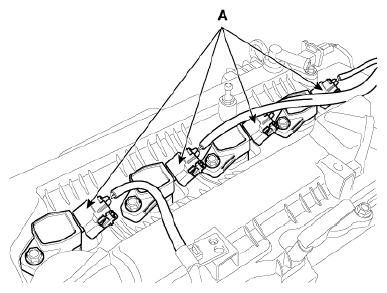

  3. Disconnect the ignition coil connectors (A).
    G12830052Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

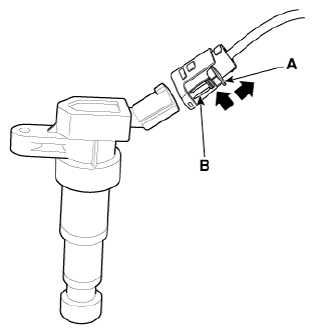

    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G12830053Courtesy of KIA MOTORS AMERICA, INC.

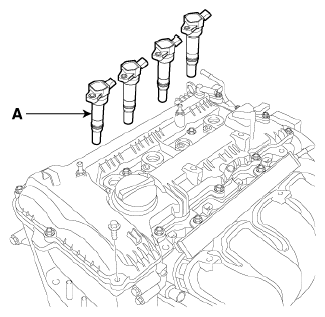

  4. Remove the ignition coil (A).
G12830054Courtesy of KIA MOTORS AMERICA, INC.
