Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

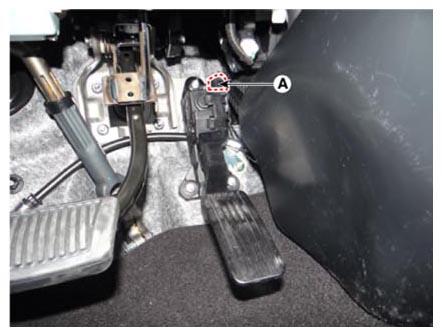

  2. Disconnect the accelerator position sensor connector (A).
    G12998237Courtesy of KIA MOTORS AMERICA, INC.

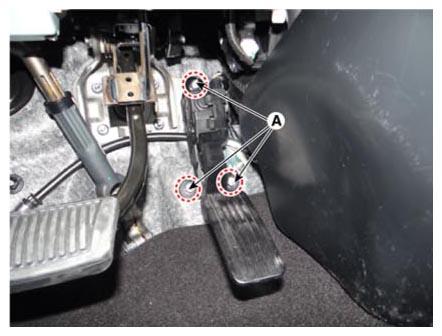

  3. Remove the accelerator position sensor after loosening the mounting nuts (A).

    Accelerator pedal sensor mounting bolt:

    12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 10.6 lb.ft)

G12998238Courtesy of KIA MOTORS AMERICA, INC.
