Home >> Kia >> 2019 >> Niro EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Components & Components Location >> Components Location

Components Location

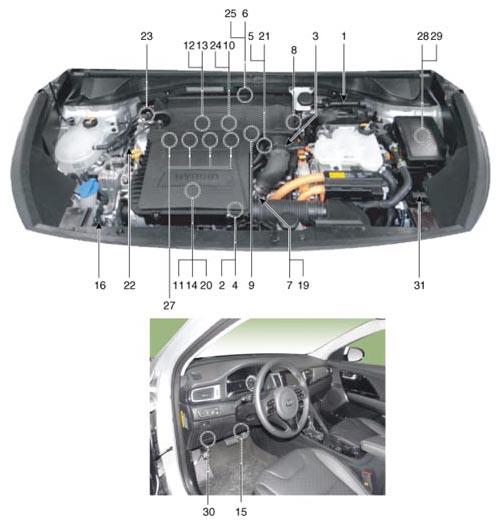

G12998153Courtesy of KIA MOTORS AMERICA, INC.

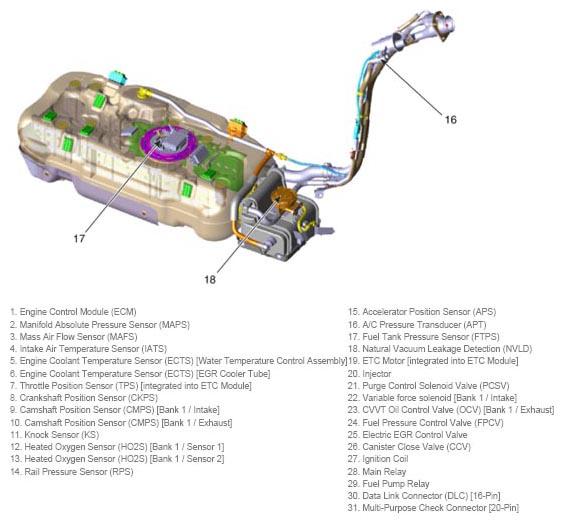

G12998154Courtesy of KIA MOTORS AMERICA, INC.

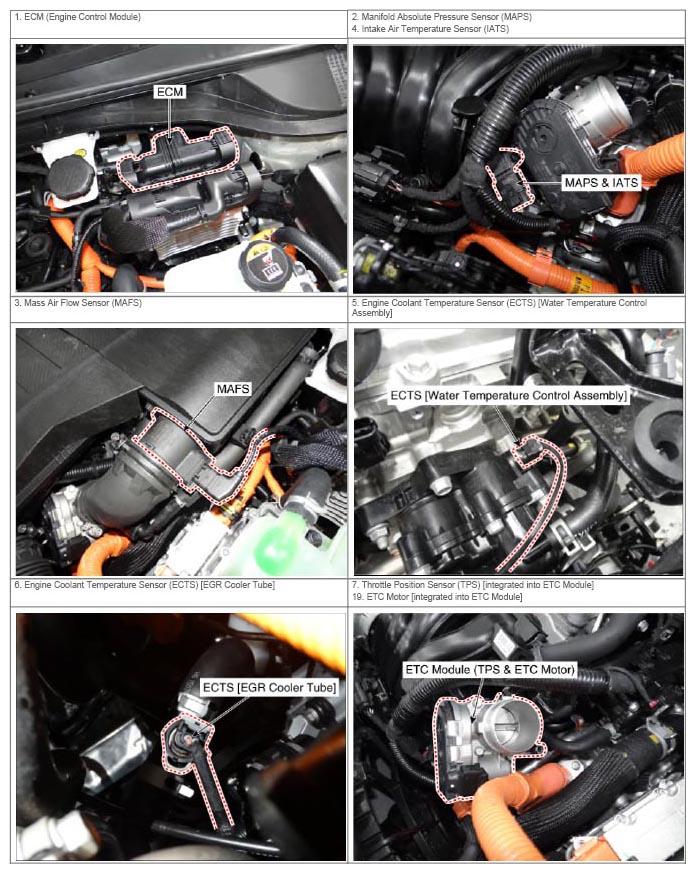

G12998155Courtesy of KIA MOTORS AMERICA, INC.

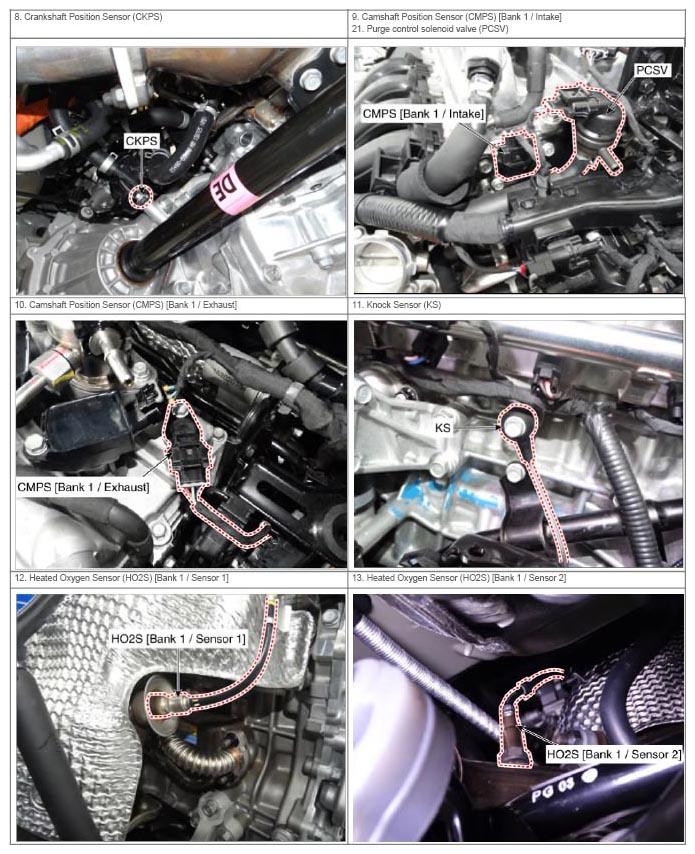

G12998156Courtesy of KIA MOTORS AMERICA, INC.

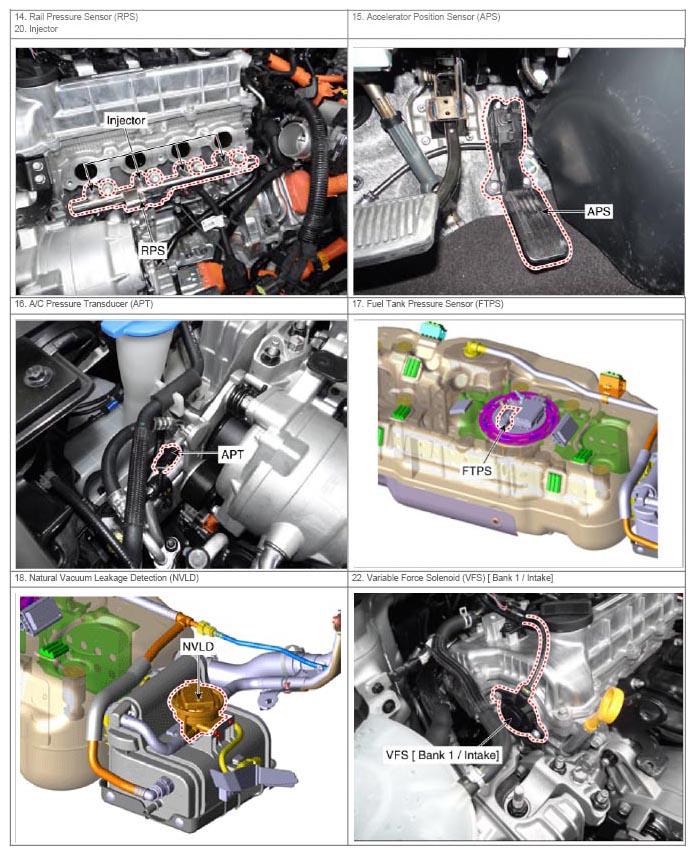

G12998157Courtesy of KIA MOTORS AMERICA, INC.

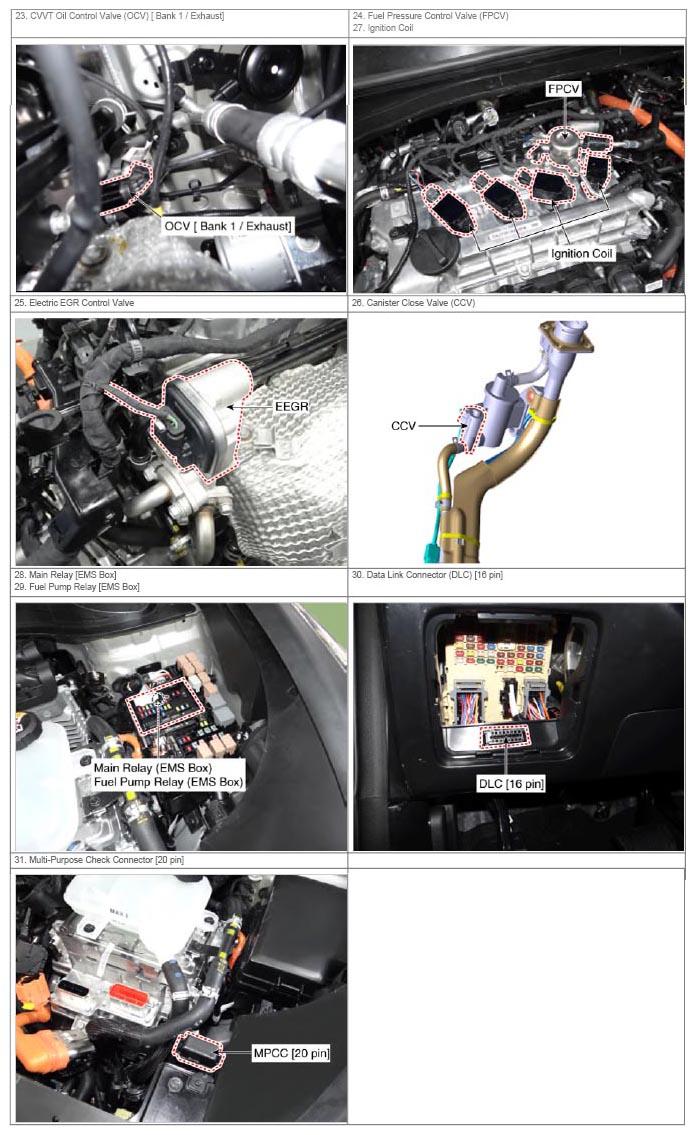

G12998158Courtesy of KIA MOTORS AMERICA, INC.
