Components Location

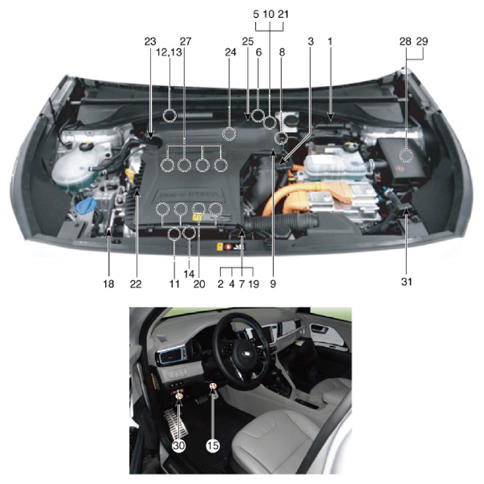

G13348708Courtesy of KIA MOTORS AMERICA, INC.

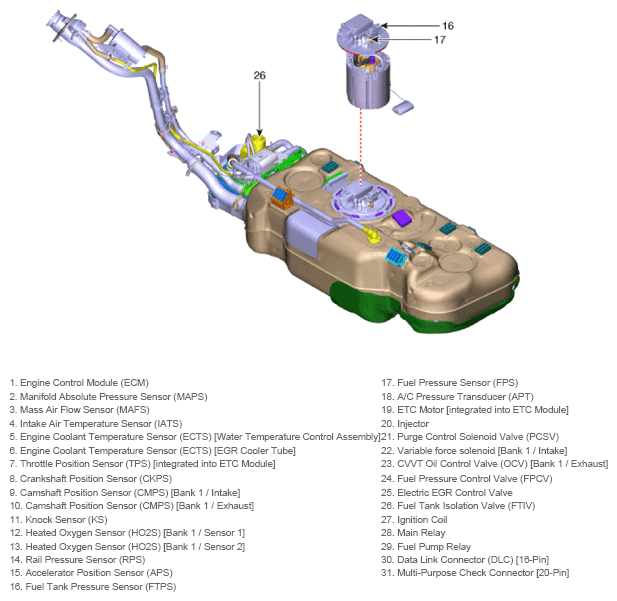

G13348709Courtesy of KIA MOTORS AMERICA, INC.

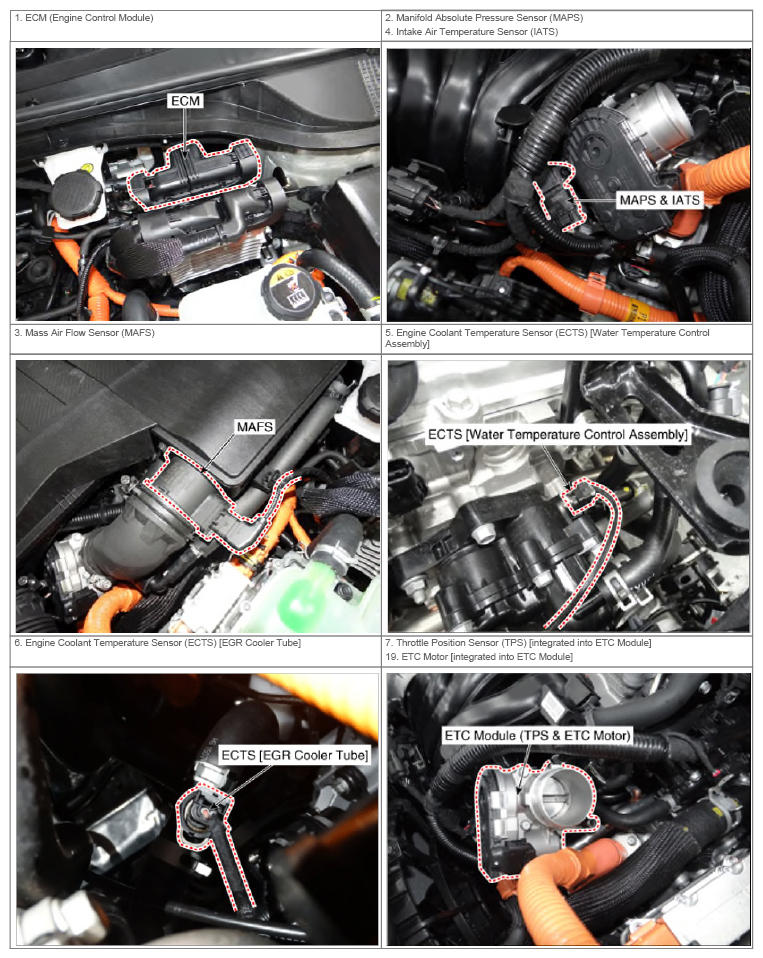

G13348710Courtesy of KIA MOTORS AMERICA, INC.

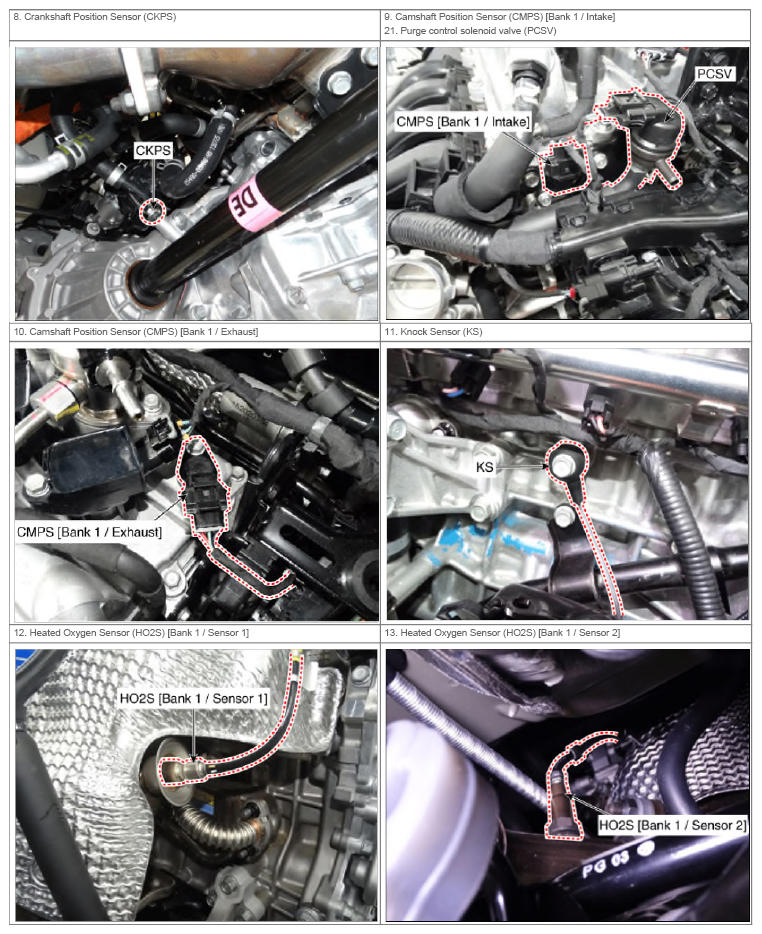

G13348711Courtesy of KIA MOTORS AMERICA, INC.

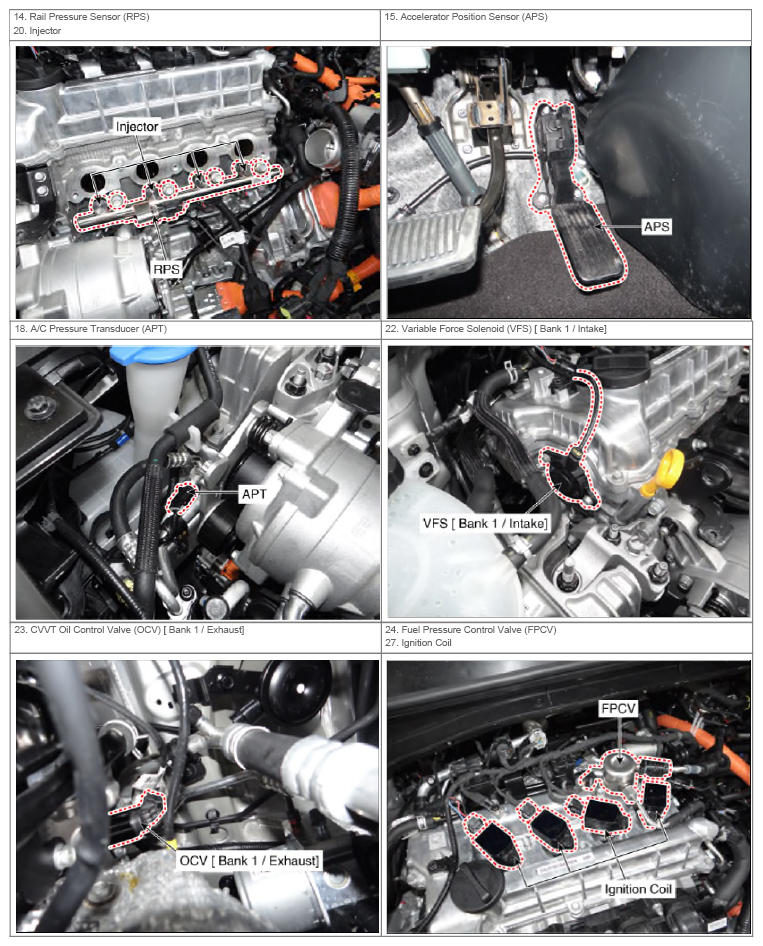

G13348712Courtesy of KIA MOTORS AMERICA, INC.

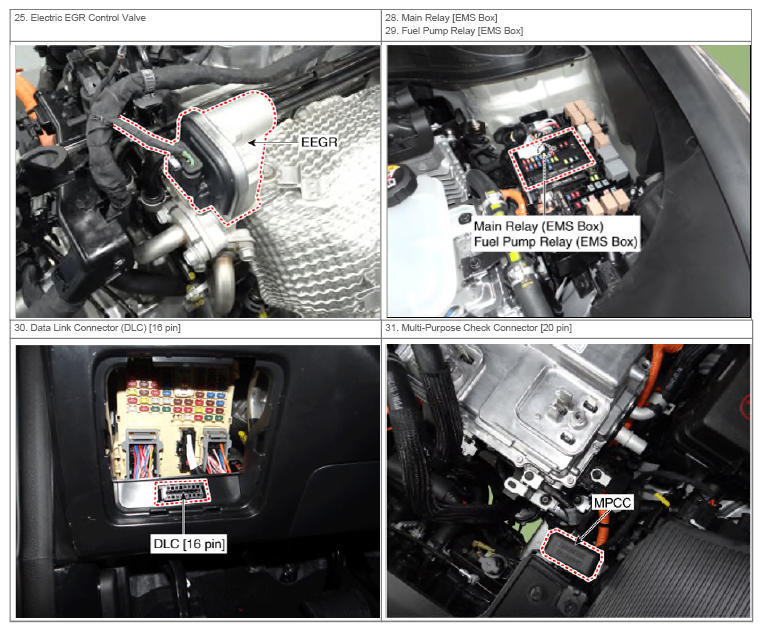

G13348713Courtesy of KIA MOTORS AMERICA, INC.
