Home >> Kia >> 2020 >> Sorento L >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L >> Components & Components Location >> Components Location

Components Location

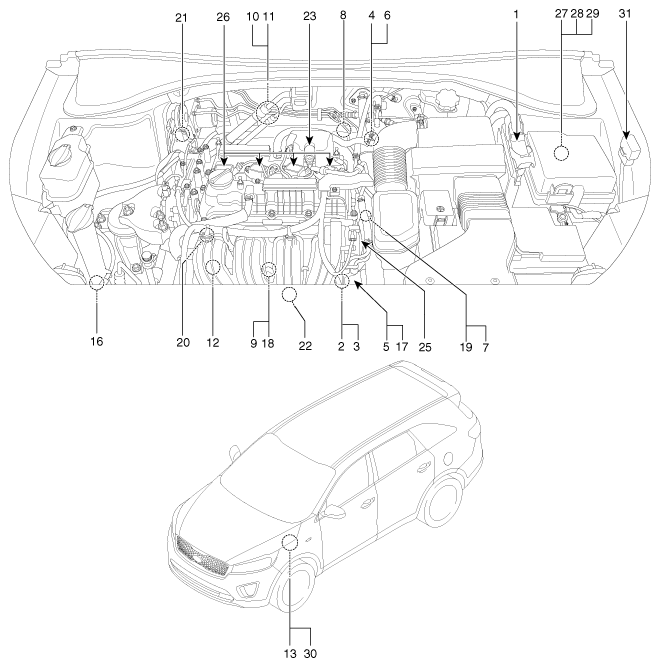

G12848500Courtesy of KIA MOTORS AMERICA, INC.

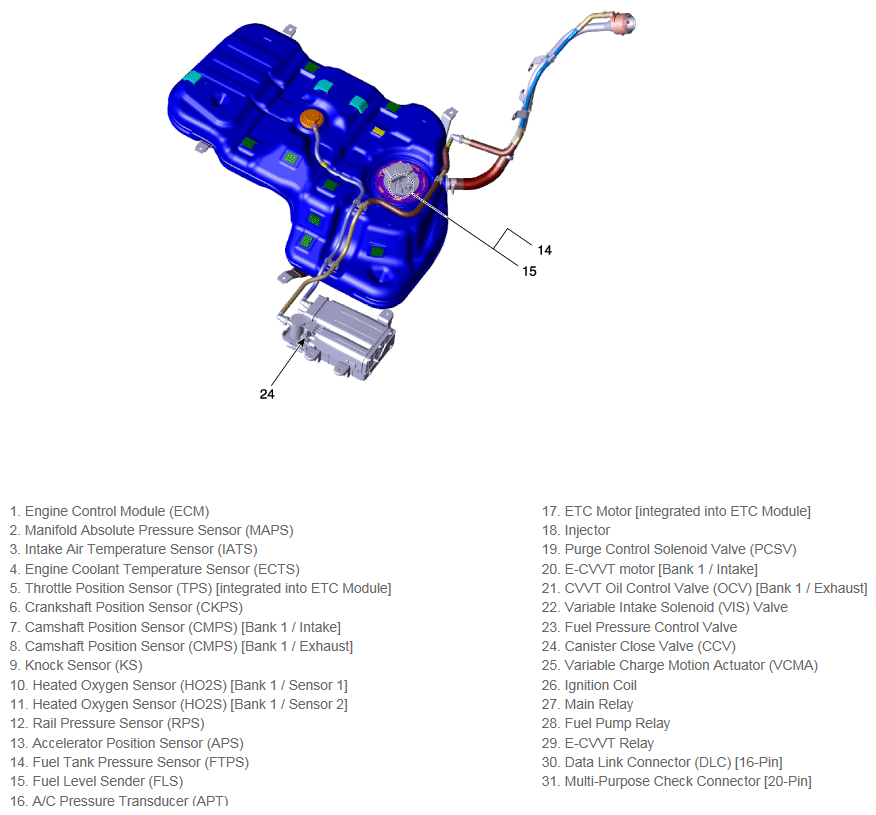

G12848501Courtesy of KIA MOTORS AMERICA, INC.

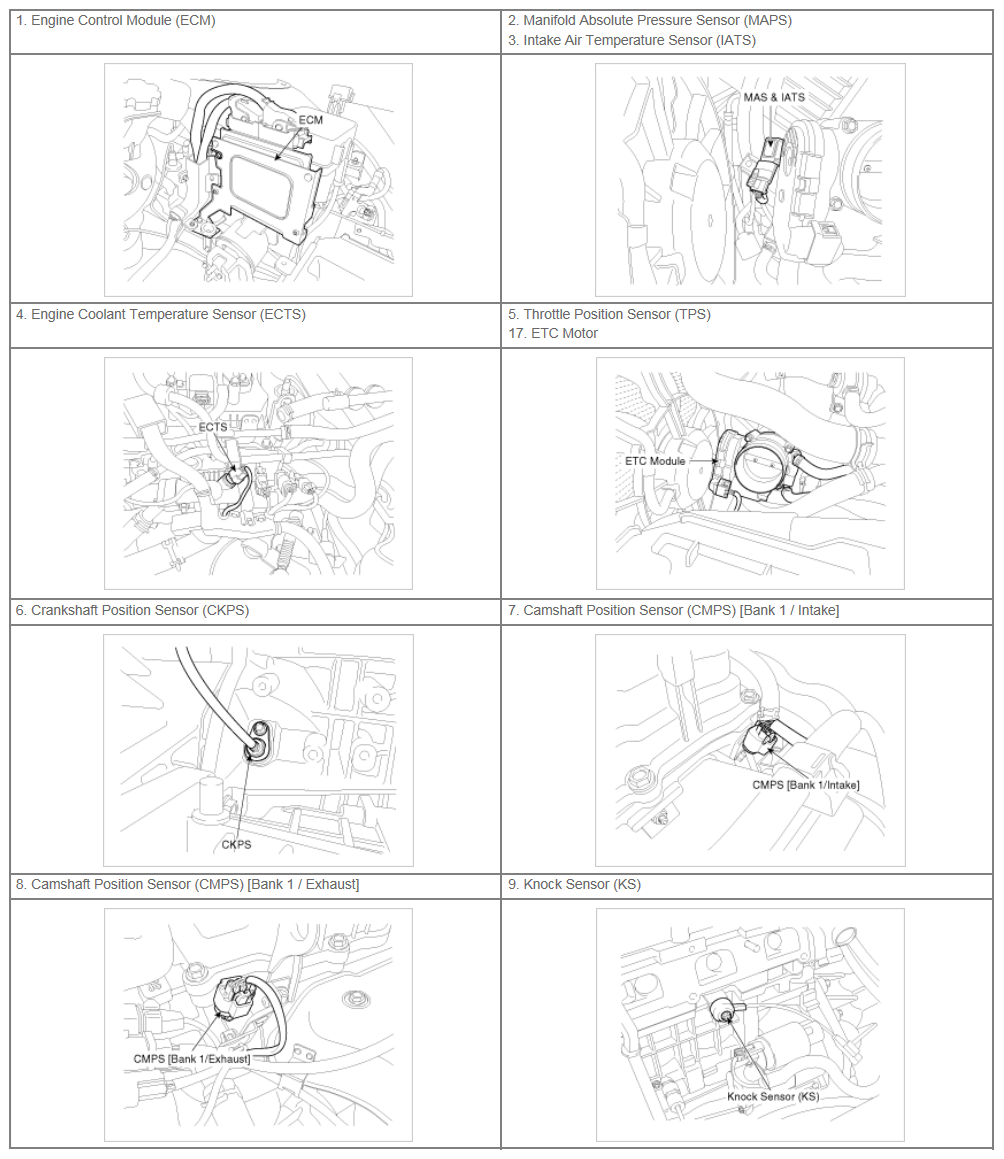

G12848502Courtesy of KIA MOTORS AMERICA, INC.

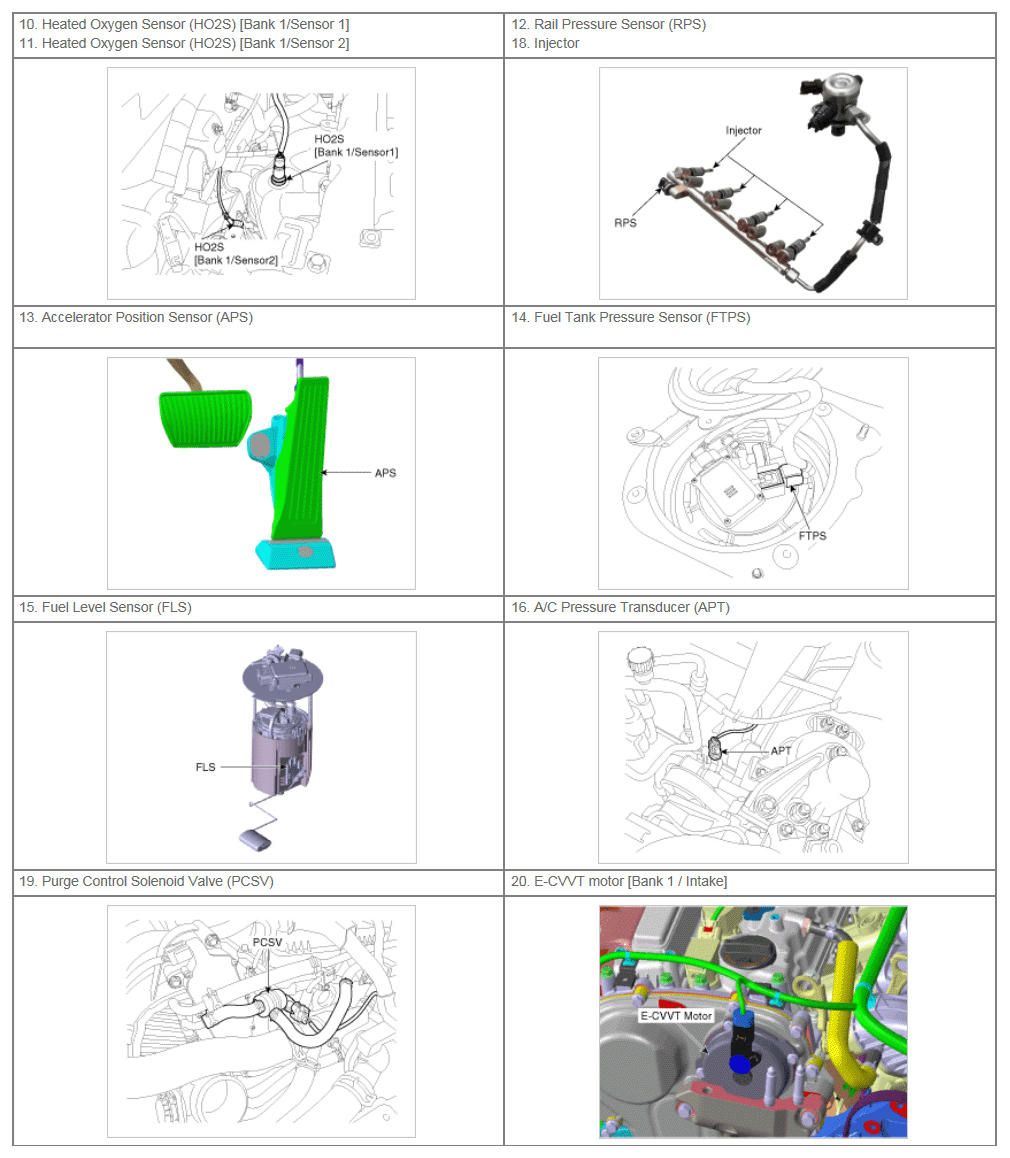

G12848503Courtesy of KIA MOTORS AMERICA, INC.

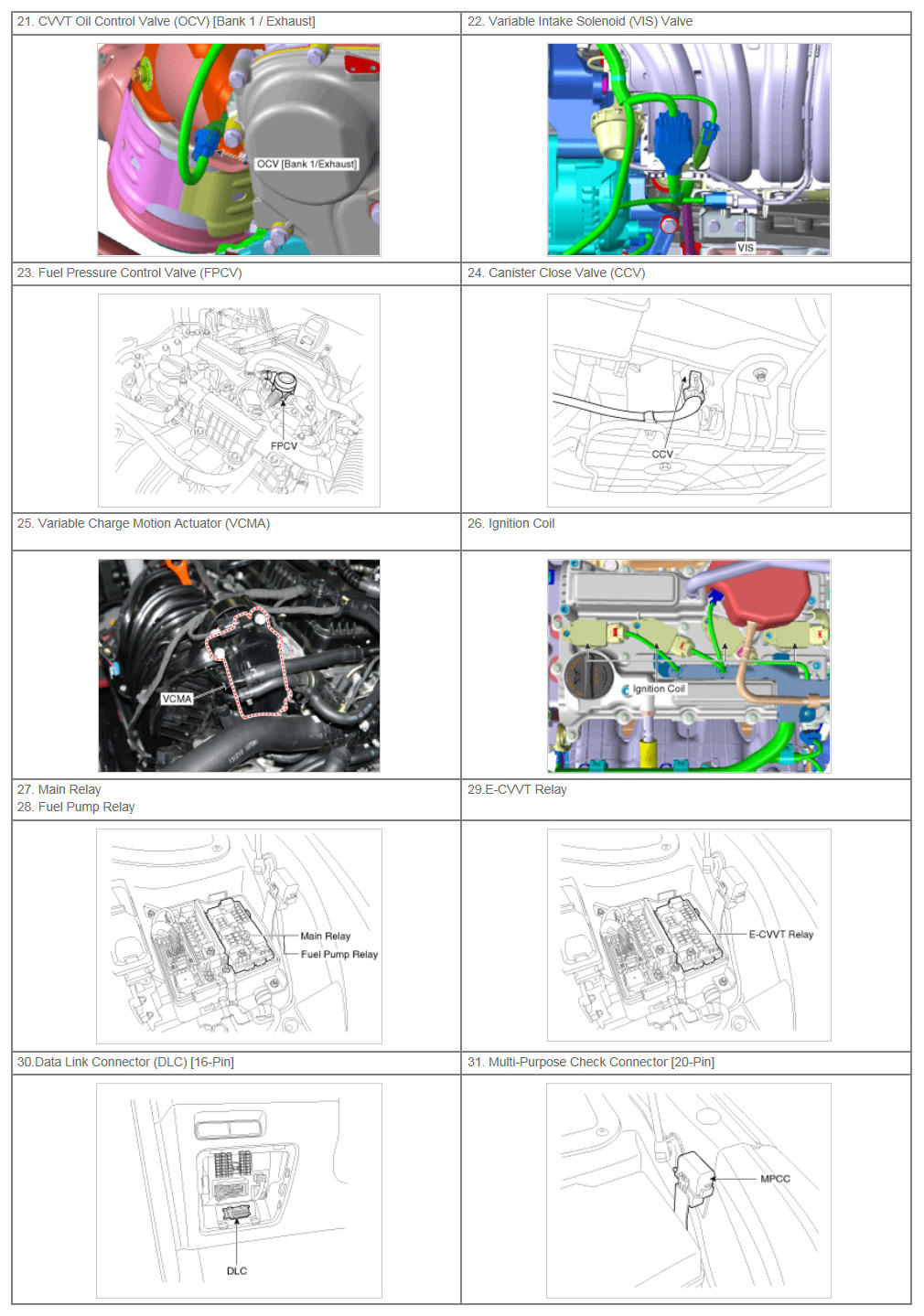

G12848504Courtesy of KIA MOTORS AMERICA, INC.
