Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

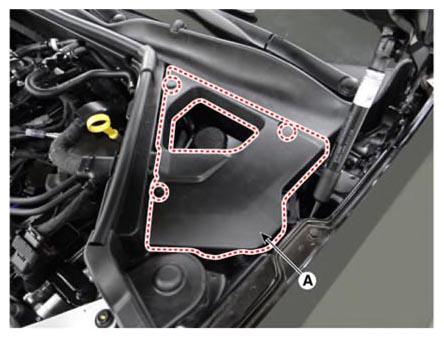

  2. Remove the engine side cover (A).
    G12803451Courtesy of KIA MOTORS AMERICA, INC.

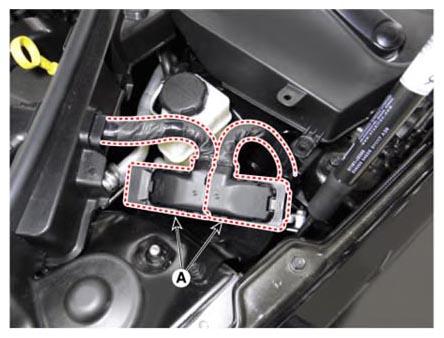

  3. Disconnect the ECM Connector (A).
    G12803452Courtesy of KIA MOTORS AMERICA, INC.

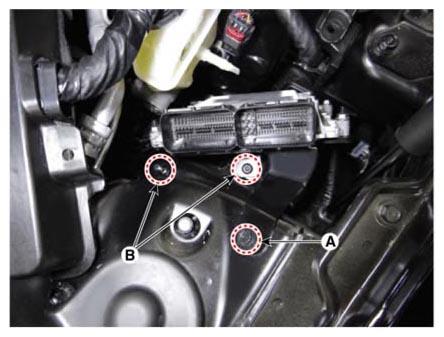

  4. Remove the ECM bracket assembly after loosening the mounting bolt (A) and nuts (B).

    ECM mounting bolt/nut  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G12803453Courtesy of KIA MOTORS AMERICA, INC.

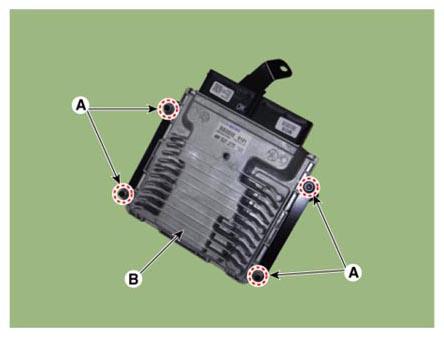

  5. Remove the ECM(B) after loosening the mounting nuts (A).

    ECM bracket mounting bolt/nut  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G12803454Courtesy of KIA MOTORS AMERICA, INC.

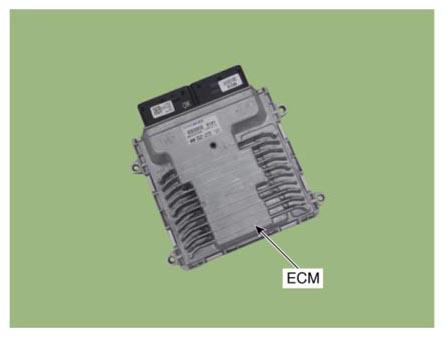

    G12803455Courtesy of KIA MOTORS AMERICA, INC.
