Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE  ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the delivery pipe & injector assembly.

    (Refer to Fuel Delivery System - " DELIVERY PIPE  ")

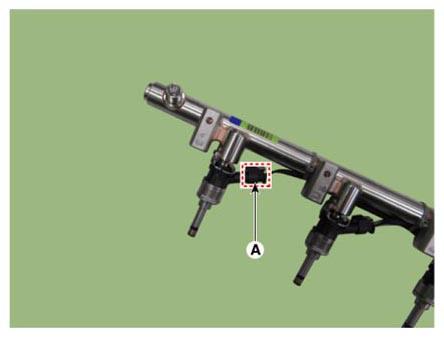

  4. Remove the injector from the delivery pipe after disconnect the connector (A).
    G12803545Courtesy of KIA MOTORS AMERICA, INC.
