Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Repair Procedures >> Removal >> Front Power Window Motor

Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

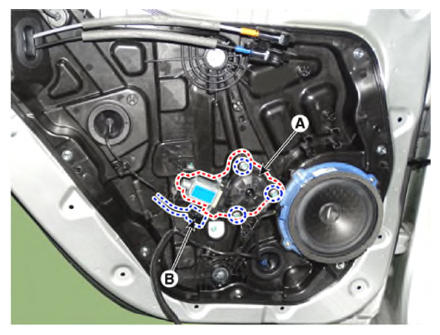

  3. Remove the front power window motor (A) by loosening the bolts after disconnecting the connector (B).
    G13306160Courtesy of KIA MOTORS AMERICA, INC.
