Repair Procedures: Removal

  1. Turn The Ignition Switch Off And Disconnect The Battery Negative (-) Terminal.
  2. Disconnect The Variable Intake Solenoid Valve Connector (A) And Vaccum Hose (B).
    G13307197Courtesy of KIA MOTORS AMERICA, INC.

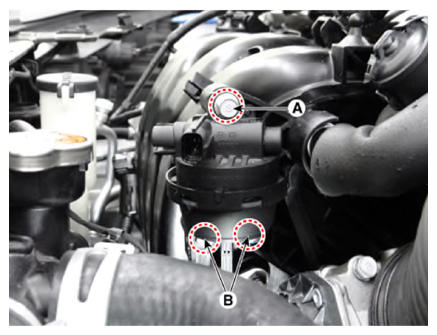

  3. Remove The Vis Valve Mounting Bolts (A).

    Variable Intake Solenoid Valve Bracket Mounting Bolt:

    9.8 - 11.8 N.M (1.0 - 1.2 Kgf.M, 7.2 - 8.7 Lb.Ft)

    G13307198Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove The Vis Valve (A) After Loosening The Rod (B).
    G13307199Courtesy of KIA MOTORS AMERICA, INC.
